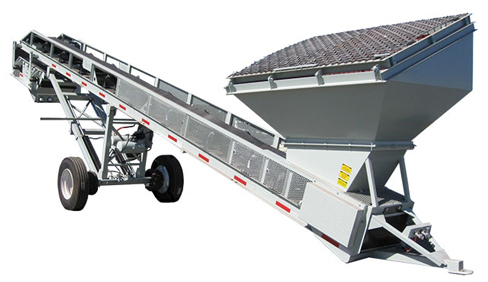

Fab Tec Aggregate Pro Mighty Mite

Double tap to zoom



Features

4.25 C.Y, 1/4" PLATE FEED HOPPER WITH ADJUSTABLE WEIGHTED FEED GATE.

HEAVY DUTY 8 FT WIDE SCREEN CLOTH TYPE GRIZZLY (JOINED AND HINGED TO LIFT FOR CLEANING).

  1. Designed to accept standard 6’x8’ long screen cloth.

MAIN FEED CONVEYOR 24"x40': 7 1/2 HP TEFC MOTOR

  1. Falk 5203 reducer.
  2. Dodge SCM bearings and 2 ply belt 3/16" cover.
  3. Close setting on Cema B sealed idlers in feed area, then 48" spacing.
  4. Vulcanized lagged head pulley, self cleaning wing tail pulley.
  5. Manual raise and lower with hydraulic options available.

3'x6' SINGLE DECK PRO INCLINE SCREEN:

  1. OLI2900/8 shaker motor.
  2. Screen mounted on 116 Firestone airbags.
  3. 1/4" plate sidewalls.
  4. Screen deck is fastened with huck bolts.
  5. 6x6x1/2” angle iron subframe.
  6. Screen cloth protector rubber and clamp bars provided.
  7. Rust inhibitor primer and two finish coats.

OPTIONS:
12V HYDRAULIC RAISE AND LOWER:

  1. 12V Delta hpx-200 power unit.

SWITCH GEAR:

NEMA 4 ENCLOSURE WITH START AND STOP BUTTONS ON DOOR AND FIREUP WARNING HORN MOUNTED ON STAND, TO INCLUDE THE FOLLOWING STARTERS:

  1. (1) 7.5 HP conveyor starter.
  2. (1) 2 HP screen starter.

SELF CONTAINED OPTION:

  1. 20 HP Honda engine.
  2. Industrial 460V, 11Kw generator.
  3. 10 gal fuel tank.
  4. 12V battery & battery box.
  5. Mounted in self-leveling fashion.

Specifications

26" Deep frame, 2"x2"x1/4" angle iron top rails; C8x11.5 bottom rail.
Undercarriage 4"x4" and 31/2x31/2 tube steel telescoping struts.
22,500 lbs.axle w/11:00x22.5 tires, ten hole hub piloted wheels.
Lights, mudflaps, and air brakes provided.
