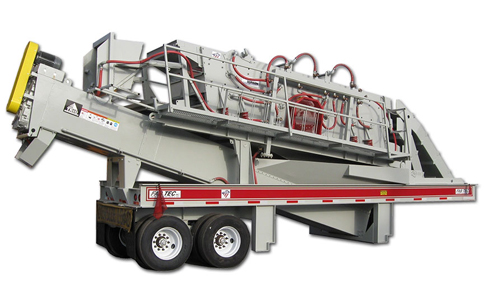

Fab Tec Aggregate Pro 5' x 16' Three Deck Wash Plant

Double tap to zoom



Features

Safety guards, sandblasted chassis, rust inhibitor primer, and two finish coats included.

Options:
Feed slurry box with spray bars.

Specifications

Pro 5x16 3 Deck Incline Screen:

20 HP TEFC with pivot motor base and belt drive.
3/8" PL side walls.
Huck bolted screen decks, constructed of 4" x 3" x 3/8" angle iron and 3" x 2" rectangular tubing, 1⁄2" x 3" FB crown bars.
AR lined discharge lips.
AR lined feed box.
Alco high temper isolation springs.
100 MM F.A.G. spherical bearings designed for shaker screens.
Center support tube 9" with 1⁄2" wall and 2" thick flanges.
FAB TEC cartilage style bearing housings, with heavy duty 1 1/4" wall.
Eccentrics with add on weights.
10" WF sub frame 33# with C8"x 13.75# cross members.

36"x25' Sandscrew:

15 HP TEFC Teco Motor.
Greasable lower bearing, rubber sealed with bearing spacer for trouble free use.
Extra thick replaceable wear plates, tube & spiral.
100 TPH MAX. CAPACITY material size 3/8".

(3) AR Lined discharge chutes w/ easy access to product conveyor.
(10) Spray Bar Wash System

Brass "Vee Jet" nozzles, 1⁄2" spray bars.
Brass individual gate valves for each spray bars.
Full length water manifold with inlet pipe and flange.
Maximum capacity 657 GPM at 40 PSI. Best results are at 450 GPM at35 psi.
18" Walkways both sides of screen, back 48" platform, skywalk floor, 3" toe boards, 42" tubesteel handrails, and access ladder.

Tandem Axle Carrier 16" WF Beams 50#

Hutch 9700 series suspension.
22,500# Standard forge axles.
11:00x22.5 Tires, 10 hole hub piloted wheels.
Standard 5th wheel plate, brakes, lights, & mud flaps.

Travel Height14'3", Operating height 16',Width 10'.
Axle wt. 26,340#. Pin wt. 13,260#. Total 39,600#.
