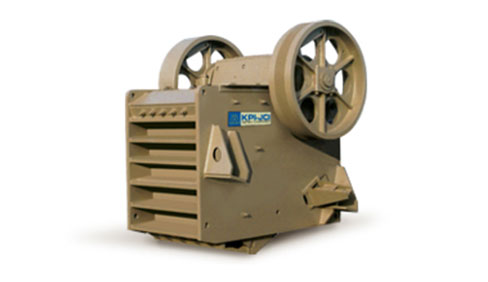

Features

SHAFT
– SAE4150 forged steel shaft
– Increased stroke

BEARINGS
– Spherical roller self-aligning type with straight bore pitman bearing
– Tapered bore main bearing
– Pillow block housing mounted in saddle blocks

FLYWHEEL
– 50” diameter 10-5V grooves drive flywheel
– 50” flat face flywheel opposite side

PITMAN
– Cast steel design

BASE
– Low carbon steel fabrication
– Stress relieved

TOGGLE
– Ductile iron
– Steep angle for increased production

SIDE LINERS
– Abrasion resistant steel
– (3) three piece bolt on

JAW DIES
– Manganese steel with machined back
– Multiple configuration available

ADJUSTMENT
– Hydraulic dual wedge
– Auto tensioning system

LUBRICATION
– Grease system

OPTIONAL
– TIR (Tramp Iron Relief)

CRUSHER DATA
Jaw Opening (Gap)........................................30” (762mm)
Jaw Width.....................................................55” (1397mm)
Moving Jaw, Overall Depth.......................60.5” (1537mm)
Stationary Jaw, Overall Depth...................59.5” (1511mm)
Weight...............................................50,000 lb (22,700 kg)
Power Required (HP).....150-200 Electric, 190-250 Diesel
RPM..............................................................250 Maximum
Stroke.........................................................................1-1/2”

Specifications

Model

Jaw Opening
(in / mm)

Weight
(lbs / kg)

Capacity
(tph / mtph)

3055

30 x 55 / 762 x 1397

50000 / 22700

528 / 479
