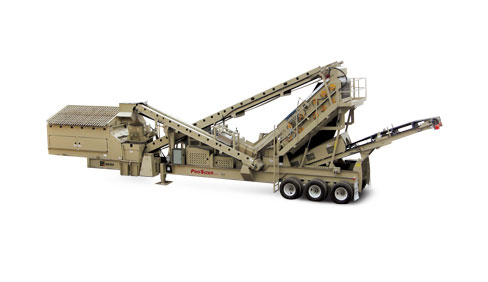

KPI-JCI High Frequency Screen Plants

Double tap to zoom



Features

High frequency screens provide an aggressive screen vibration directly applied to the screen media that allow for the highest screen capacity in the market for fines removal, chip sizing, dry manufactured sand and more.

These screens range from 6' x 6' up to 6' x 24' in single, double and triple deck configurations depending on screen model. Multiple configurations for high frequency screens are available in stationary, portable or mobile screening solutions depending on application needs. Stationary processing systems can be configured with either a traditional I-Beam or Modular structure design.

KPI-JCI and Astec Mobile Screens' high frequency screening plants can be retrofitted to your existing system to enhance its capabilities.

Specifications

Model Screen Size
(ft x ft / cm x cm)
Weight
(lbs / kg)
Screening Capacity
(tph / mtph)
Feed Range
(in / mm)
FNG 2612V 6 x 12 / 183 x 266 66,400 / 30,119 350 / 318 20 mesh - 4 / 20 mesh - 102
FNG 2612D 6 x 12 / 183 x 266 65,400 / 29,665 350 / 318 20 mesh - 6 / 20 mesh - 152
FNG 2512K 5 x 12 / 1.524m x 2.074m   350 / 315 3” to 10 M
ProSizer® 3100 6 x 12 / 183 x 266 70,000 / 31,751 250 / 227 20 mesh - 6 / 20 mesh - 152
PSP 2618VM 6 x 18 / 183 x 549 68,900 / 31,253 350 / 318 20 mesh - 4 / 20 mesh - 102
PTSC 2618VM 6 x 18 / 183 x 549 28,000 / 12,701 350 / 318 20 mesh - 4 / 20 mesh - 102
Super Series IIID 6 x 20 / 183 x 610 98,000 / 44,452 350 / 318 20 mesh - 6 / 20 mesh - 152
ProSizer® 4200 5 x 16 / 152 x 488 105,700 / 47,945 300 / 270 21 mesh - 6 / 21 mesh - 152
