Features

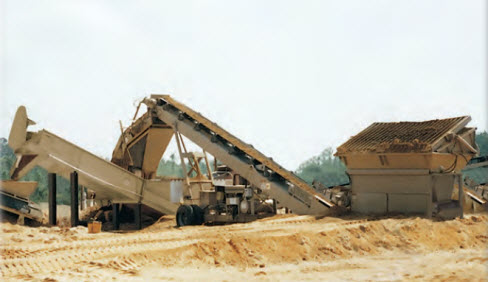

The 271K offers a traditional screening plant in single, double and triple deck configurations depending on plant and screen model. Capable of processing sand & gravel, topsoil, slag, crushed
stone and recycled materials, these plants are a simple-to-use and highly reliable screening plant.  Diesel power engine is water-cooled and powers all plant functions, as well as off-plant stacking conveyors. All plants provide easy access to the hydraulic plant controls and screen angle adjustment.

SCREEN:
2408K double deck screen: 4’ x 8’ top and bottom deck driven
by 1200 RPM vibrating mechanism mounted on screen box;
Variable eccentric shaft with five (5) force amplitude settings
on adjustable slip counterweights; Rubber isolator blocks;
Hydraulic controls for variable angle operation. Top and
bottom discharge chutes and aggregate spreader. Standard
material separations range from 3” to 10M depending on
application.

POWER SYSTEM:
80 HP John Deere water-cooled diesel engine to power
all plant functions and two off-plant stacking conveyors;
Adjustable hydraulic power allows for optional hammermill
shredder to be powered with unit less one stacking conveyor
described above. NEMA-4 rated instrument panel, tachometer,
hour meter, voltmeter, oil pressure gauge, oil temperature
gauge and emergency stop.

CHASSIS:
The 271K plant has heavy-duty truck frame with king pin
towing attachment; Single cylinder adjust for operating set-up;
Hydraulic jack for loading and unloading; 11:00 x 22.5 dual
tires; air brakes; tail lights.

PLANT CAPACITY:
Screening plant can process up to 250 TPH or more of feed
material. Actual tonnages will vary depending on application
requirements: feed material size, material separations,
type of screens used, weight of product and other material
considerations.

CONVEYOR SYSTEM:
Delivery Conveyor - 40’ x 30” hydraulic driven delivery
conveyor (350 FPM).

FEEDER SYSTEM:-
9 cubic yard heaped capacity hopper with 5’-5” x 11’ top;
Heavy-duty 25° sloped grizzly with 6” nominal opening;
Hydraulic dump with patented scissor-action for easy
cleaning; Adjustable feed gate; Belt feeders are hydraulic
driven with variable speed (0-60 FPM) Belting is 330 PIW,
3/16” x 1/16” cover; 11’-6” x 36” belt feeder.

Specifications

Model

Screen Size
(ft x ft / cm x cm)

Number of Decks

Screening Capacity
(tph / mtph)

Weight
(lbs / kg)

271K

4 x 8 / 122 x 244

2

250 / 227

24000 / 10886
