Orlaco RadarEye Sets

Double tap to zoom



Features

FEATURES

  • Detects stationary & moving objects with a very small delay of 50 ms
  • Detection is not influenced by rain, snow, mug, dust or temperature changes
  • Certified quality
  • Very sturdy
  • Shock and vibration proof
  • 100% waterproof according to IP69K
  • Heated lens for the best image in all weather conditions
  • Special hard coating to prevent scratches
  • Auto-brightness
  • Armored cable made for heavy-duty applications
  • 2 years warranty

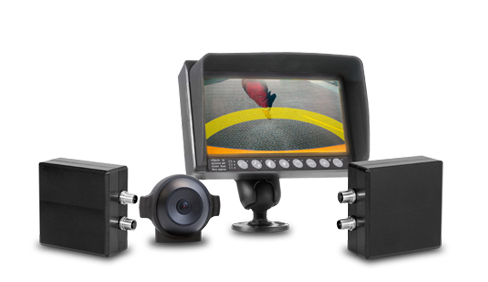

AVAILABLE SETS

  • TRV 1107RE-1 - Kit 7’’ Orlaco single RadarEye with monitor, cables and camera
  • TRV 1107RE-2 - Kit 7’’ Orlaco dual RadarEye with monitor, cables and camera
  • TRV 1107RE-1+1 - Kit 7’’ Orlaco single rear and side RadarEye with monitor, cables and 2 cameras
  • TRV 1107RE-2+1 - Kit 7’’ Orlaco dual rear and single side RadarEye with monitor, cables and 2 cameras

Specifications

SPECIFICATIONS

Camera Monitor
  • Input Voltage: 12 - 24 VDC
  • Operating Temperature: -40°C to +85°C
  • Light Sensitivity: <0,05 lux
  • Vibration Resistance: 50G
  • Protection Class: Watertight IP68 & IP69K
  • Dimensions: ø55 mm
  • Weight: 0,21 kg
  • Connector: Orlaco 4-pins male
  • Cable: 0,5 m multi-cable
  • Housing: High impact automotive synthetic
  • thermoplastic
  • polymer
  • Input Voltage: 12 - 60 VDC
  • Operating Temperature: -40°C to +85°C
  • Display: Automotive 7in TFT-LCD module with LED
  • backlight
  • Resolution: WVGA 800 x R. G. B. x 480 pixels
  • OSD Menu: Yes, in 15 languages
  • Vibration Resistance: 50G
  • Protection Class: Watertight IP67
  • Dimensions: 188 x 50 x 120 mm (excl. bracket)
  • Weight: 1,2 kg (excl. cables & bracket)
  • Connector: Orlaco 4-pins female (camera input)
  • Cable: 4 m video multi-cable, 4 m power multi-cable
  • Housing: Aluminium & high impact automotive
  • synthetic
  • thermoplastic
  • polymer





Corner-Rear Radar Set Center-Rear Radar Set
  • Sensor: 2x short range detection (SRD) sensor
  • 24.000-24.250 GHz
  • Maximum Range: 2 to 20 m detection area, divided in
  • 5 equally sized segments
  • Antenna: H 70° x V 11°
  • Operating Temperature: -40°C to +85°C
  • Protection Class: Watertight IP67
  • Weight: 3,3 kg
  • Bracket: 2x stainless steel adjustable
  • Including: SRD sensors, brackets, terminator and
  • mounting hardware
  • Excluding: Cables, interface box, camera and SRD
  • monitor
  • Sensor: 2x short range detection (SRD) sensor
  • 24.000-24.250 GHz
  • Maximum Range: 2 to 20 m detection area, divided in
  • 5 equally sized segments
  • Antenna: H 70° x V 11°
  • Operating Temperature: -40°C to +85°C
  • Protection Class: Watertight IP67
  • Weight: 3,2 kg
  • Bracket: Stainless steel adjustable
  • Including: SRD sensors, master-slave cable, bracket,
  • terminator and mounting hardware
  • Excluding: Cables, interface box, camera and SRD
  • monitor
