Features

FEATURES

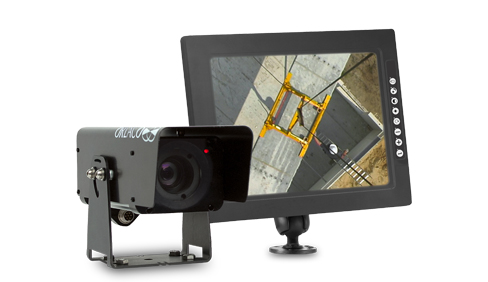

  • Enhance visibility of the lifting hook and load
  • 40x optical zoom camera
  • Certified quality
  • Very sturdy
  • Shock and vibration proof
  • Filled with nitrogen
  • 100% waterproof according to IP69K
  • Heated lens for the best image in all weather conditions
  • Special hard coating to prevent scratches
  • 0 lux night vision mode & built-in brightness function for improved view in dark situations
  • Auto-brightness
  • Armored cable made for heavy-duty applications
  • Possible to combine with the winchview and rear/side view
  • Wireless option available
  • 2 years warranty



AVAILABLE SETS

  • LV7010 - Orlaco Loadview 7’’ telescopic crane wireless
  • LV7015 - Orlaco Loadview 12’’ telescopic crane wireless
  • LV7020 - Orlaco Loadview 7’’ telescopic crane with cable
  • LV7025 - Orlaco Loadview 7’’ truck crane wireless
  • LV7030 - Orlaco Loadview 7’’ tower crane wireless
  • LV7035 - Orlaco Loadview 12’’ tower crane wireless
  • LV7050 - Orlaco Loadview 7’’ crawler crane with cable
  • LV7055 - Orlaco Loadview 12’’ crawler crane with cable
  • LV7060 - Orlaco Loadview 7’’ lattice harbour crane with cable
  • LV7065 - Orlaco Loadview 12’’ lattice harbour crane with cable
  • LV7080 - Orlaco Loadview 7’’ top crane with cable
  • LV7085 - Orlaco Loadview 12’’ top crane with cable
  • TRV 1107E-1 - Kit 7’’ Orlaco with monitor, cable and camera 80°

Specifications

SPECIFICATIONS

Camera Monitor (7in)
  • Input Voltage: 12 - 24 VDC
  • Operating Temperature: -40°C to +85°C
  • Light Sensitivity: 0 lux night vision mode
  • Vibration Resistance: 50G
  • Protection Class: Watertight IP69K
  • Dimensions: 260 x 140 x 122 mm (excl. bracket)
  • Weight: 2,6 kg
  • Connector: Orlaco 7-pins male
  • Cable: 6 m multi-cable 7pF>7pM
  • Housing: Anodise aluminium
  • Input Voltage: 18 - 30 VDC
  • Operating Temperature: -40°C to +85°C
  • Display: Automotive 7in TFT-LCD module with LED backlight
  • Resolution: WVGA 800 x R. G. B. x 480 pixels
  • OSD Menu: Yes, in 15 languages
  • Vibration Resistance: 50G
  • Protection Class: Watertight IP67
  • Dimensions: 188 x 50 x 120 mm (excl. bracket)
  • Weight: 1,2 kg (excl. cables & bracket)
  • Connector: Orlaco 7-pins female (camera input)
  • Cable: 6 m video multi-cable, 6 m power multi-cable
  • Housing: Aluminium & high impact automotive synthetic thermoplastic polymer

  Monitor (12in)

  • Input Voltage: 18 - 30 VDC
  • Operating Temperature: -40°C to +85°C
  • Display: Automotive 12,1 in TFT-LCD module with LED backlight
  • Resolution: XGA 1024 x R. G. B. x 768 pixels
  • OSD Menu: Yes, in 8 languages
  • Vibration Resistance: 50G
  • Protection Class: Watertight IP67
  • Dimensions: 236,3 x 298,3 x 35,4 mm
  • Weight: 2,9 kg (incl. cable & bracket)
  • Connector: Orlaco 7-pins female (camera input)
  • Cable: 6 m video multi-cable, 6 m power multi-cable
  • Housing: Aluminium & high impact automotive synthetic thermoplastic polymer
