Features

FEATURES

  • Enhance visibility of the hoists
  • Certified quality
  • Very sturdy
  • Shock and vibration proof
  • Filled with nitrogen
  • 100% waterproof according to IP69K
  • Heated lens for the best image in all weather conditions
  • Special hard coating to prevent scratches
  • Auto-brightness
  • Armored cable made for heavy-duty applications
  • Possible to combine with the loadview and rear/side view
  • 2 years warranty



AVAILABLE SET

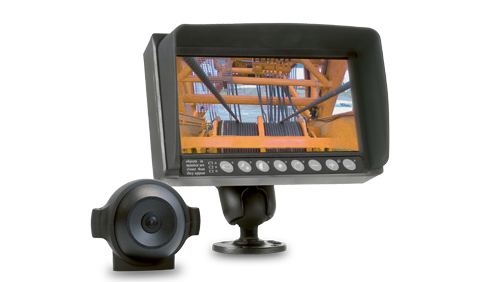

  • WV7200 - Orlaco Winchview 7’’ monitor with cable and camera 60°

Specifications

SPECIFICATIONS

Camera Monitor
  • Input Voltage: 12 - 24 VDC
  • Operating Temperature: -40°C to +85°C
  • Light Sensitivity: <0,05 lux
  • Vibration Resistance: 50G
  • Protection Class: Watertight IP68 & IP69K
  • Dimensions: ø55 mm
  • Weight: 0,21 kg
  • Connector: Orlaco 4-pins male
  • Cable: 0,5 m multi-cable
  • Housing: High impact automotive synthetic thermoplastic polymer
  • Input Voltage: 12 - 60 VDC
  • Operating Temperature: -40°C to +85°C
  • Display: Automotive 7in TFT-LCD module with LED backlight
  • Resolution: WVGA 800 x R. G. B. x 480 pixels
  • OSD Menu: Yes, in 15 languages
  • Vibration Resistance: 50G
  • Protection Class: Watertight IP67
  • Dimensions: 188 x 50 x 120 mm (excl. bracket)
  • Weight: 1,2 kg (excl. cables & bracket)
  • Connector: Orlaco 4-pins female (camera input)
  • Cable: 4 m video multi-cable, 4 m power multi-cable
  • Housing: Aluminium & high impact automotive synthetic thermoplastic polymer
