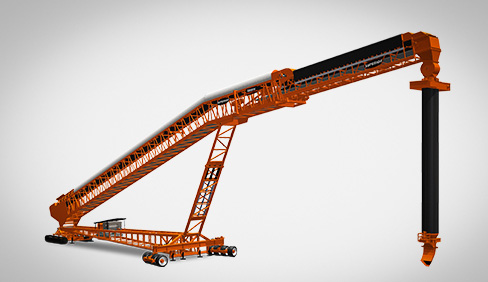

Superior Industries Stingray™ Conveyor

Double tap to zoom



Features

  • Reduced drop height maintains tight clearance between conveyor and vessel.
  • Mobility combined with telescopic technology allows users to fill multiple hatches from one feed point.
  • Maintaining a single feed point reduces constant relocation, speeding the loading process.
  • In addition, the conveyor's luffing action allows it to adjust to tides and diverse ship sizes.
  • At rates up to 5,000 tons per hour, we manufacture the highest capacity radial telescopic conveyor.
  • This versatile machine performs numerous functions including loading, unloading and stockpiling.

Specifications

Pulley Centers (Extended) 175' - 8"
Pulley Centers (Retracted) 145' - 0"
Conveyor Ground Length (Raised/Extended) 164' - 10"
Conveyor Ground Length (Lowered/Retracted) 141' - 3"
Ground to Pulley Center Height (Raised/Extended) 63' - 0"
Ground to Pulley Center Height (Lowered) 26' - 0"
Tail Pulley to Axle 75' - 3"
Belt Speed 400 FPM
Max Tons Per Hour 500 TPH
