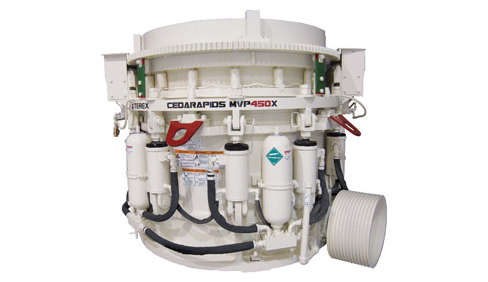

Terex/Cedarapids MVP Cone Crushers

Double tap to zoom



Features

MVP280

  •     Manual Hydraulic Adjustment System (Man-in-the-loop) with control buttons on door
  •     Hydraulic powered threaded upper assembly for quick crusher setting adjustment under load
  •     Hydro-pneumatic tramp iron relief system
  •     Patented El-JayTM Rollercone® roller bearing design
  •     Heavy-duty, one-piece, cast base frame
  •     Numerous crushing chamber configurations
  •     Lubrication oil flow safety switch and warning horn
  •     Non-ferrous V-seat wear liners
  •     Crusher hopper

MVP380X, MVP450X, MVP550X

  •     Manual RLC (Relay Logic Control) push-button control panel with 10' (3m) tether
  •     Fully guided dual action tramp relief cylinders
  •     Hydraulic powered threaded upper assembly for quick crusher setting adjustment under load
  •     Hydro-pneumatic tramp iron relief system
  •     High-flow manifold with 5-gallon (18.9 liter) accumulators provide instant crusher reset
  •     Pinned cylinder ends for easy cone separation
  •     Patented El-JayTM Rollercone® roller bearing design for high efficiency
  •     Heavy-duty cast steel base frame
  •     Automatic oil circulation system assists cold weather start-ups



Specifications


Weight lbs (kg)
Capacity tph (t)
@ 1.25” (32mm) CSS
Engine Power hp (kW)
MVP280 Rollercone
36,500 (16,556)
260-335 (236-305)
200 (149)
MVP380X Rollercone
43,130 (19,563)
295-380 (268-345)
300 (224)
MVP450X Rollercone
52,600 (23,828)
355-450 (321-408)
400 (298)
MVP550X Rollercone
68,000 (30,844)
450-565 (410-514)
500 (373)
