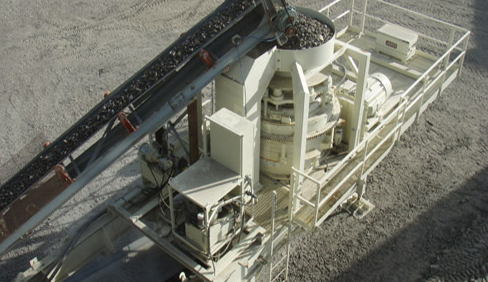

Terex/Cedarapids RC Series Cone Crushers

Double tap to zoom



Features

RC45 III

  •     All roller bearing construction
  •     Direct-gear-drive lubrication oil pump with safety switch and warning horn
  •     Hydraulic setting adjustment
  •     Pre-start lubrication pump
  •     Oil flow meter
  •     V-belt drive
  •     Alloy steel pinion shaft and gear set
  •      Bolt-on counterweights provide balance
  •     Hydro-pneumatic tramp iron relief system with pump
  •     Self-contained oil reservoir
  •     Interchangeable between standard and fine crushing chambers
  •     Patented replaceable vee-seat inserts
  •     Replaceable strut guards
  •     Spiral bevel ring and pinion gears


RC54 II

  •     All roller bearing construction
  •     Wide unobstructed discharge
  •     Alloy steel pinion shaft and gear set
  •     Close running deep tapered grooved labyrinth seals
  •     Cone manganese easily replaced without removing cone
  •     Large unobstructed feed opening
  •     Bolt-on counterweights eliminate shaking
  •     Hydro-pneumatic tramp iron relief system with pump
  •     Long-traveling relief cylinders
  •     Easily removable top or bonnet assembly intact
  •     Bowl manganese replaceable without dismantling tramp iron relief system
  •     Vee-seat assembly not integral part of base frame
  •     Crusher sheave
  •     Quick hydraulic shim adjustment
  •     Self-contained oil reservoir
  •     Electric lubrication pump
  •     Immersion oil heater with thermostat
  •     Visual indicator on oil filter and flow switch



Specifications


Weight lbs (kg)
Capacity tph (t)
@ 1.25” (32mm) CSS
Engine Power hp (kW)
RC45-III Rollercone
32,000 (14,500)
220-320 (200-290)
200 (149)
RC54-II Rollercone
42,500 (19,278)
280-385 (254-350)
300 (224)
