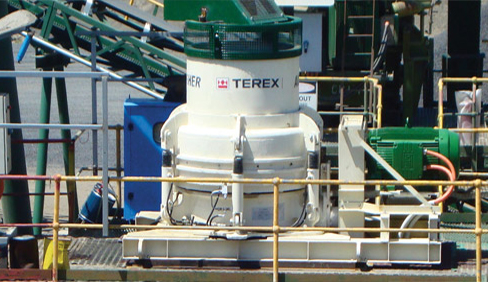

Terex/Cedarapids TC Cone Crushers

Double tap to zoom



Features

Robust Construction

  •     Fully automatic controls
  •     Designed for the most arduous applications


Low Profile

  •     Important where headroom is restricted
  •     Ideally suited for mobile plant application


Advanced Hydraulics

  •     Accessible external hydraulics
  •     Hydraulic setting adjustment
  •     Automatic hydraulic overload protection and reset


Simple Wear Part Change

  •     Designed for fast changeover
  •     Keeps downtime to a minimum
  •     Readily accessible from above machine -no need to remove cone head
  •     Unrestricted feed opening reduces blockages and bridging, and increases output


Balanced Design

  •     Reduces vibration


Advanced Bearing Arrangement

  •     High capacity taper and cylindrical roller bearings
  •     Long trouble free service
  •     Low friction characteristics compared with ‘old fashioned” plain bearings’


Proven Sealing Arrangement

  •     Utilizes rotary seal ring, piston rings and double row labyrinth seals


Overload Protection

  •     Hydraulic relief system with automatic reset


Setting Adjustment / Unblocking Facility

  •     Push button controlled hydraulic cylinders raise and lower the upper frame assembly to adjust the crusher setting and to unblock the crushing chamber



Specifications


Weight lbs (kg)
Capacity tph (t)
@ 1.25” (32mm) CSS
Engine Power hp (kW)
TC1000
22,040 (10,000)
165-200 (150-180)
230 (179)
TC1300
48,500 (22,000)
285-350 (260-320)
300 (225)
TC1500
74,075 (33,600)
480-580 (440-530)
300 (225)
