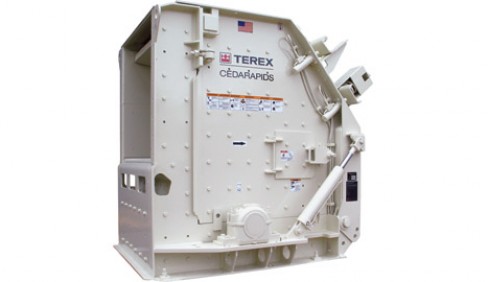

Terex/Cedarapids 1300 Series Impact Crushers

Double tap to zoom



Features

  • Extra large feed opening
  • Hydraulically opened frame
  • Large hydraulic cylinders
  • Integrated piloted locking valves
  • Balanced high strength high inertia rotor
  • Massive backing bar with replaceable insert
  • Three bar impeller standard
  • Chrome-nickel-moly-steel flared shaft
  • Patented center pull wedge system
  • Replaceable rotor guards
  • Large 5" (127 mm) thick one piece manganese steel impeller bars
  • Massive cast manganese “monoblock” reversible primary apron
  • Hydraulic assist apron adjustment
  • Spring loaded secondary apron
  • Easy removal of primary and secondary aprons
  • Replaceable 3" (76 mm) thick high-chrome secondary apron liners
  • AR500 replaceable frame liners
  • 5 hp (3.7 kW) electric/hydraulic power unit
  • Large spherical roller bearings, hydraulically removable, taconite-type labyrinth seals
  • Flanged feed opening accepts feed adapters
  • Replaceable feed plate liners
  • Easy access inspection doors
  • Left hand drive (facing feed opening)

Specifications


Weight lbs (kg)
Capacity tph (t)
Engine Power hp (kW)
IP1313 Primary Impact Crusher
30,800 (13,970)
150-300 (136-272)
250-300 (186-224)
IP1316 Primary Impact Crusher
38,500 (17,463)
250-400 (227-363)
300-400 (224-298)
