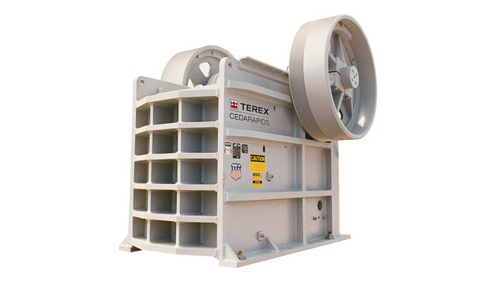

Terex/Cedarapids JC Jaw Series

Double tap to zoom



Features

  • Fabricated, stress-relieved welded steel base
  • Rib-reinforced side plates
  • Close-tolerance machining of jaw plate backs and seating surfaces
  • Reversible key plates (JC2236 and JC2248)
  • Drop-forged, heat-treated, chrome-nickel-steel overhead eccentric shaft
  • Rugged cast steel pitman with grease lubrication (circulating oil lubrication system on JC5460)
  • Spherical self-aligning roller bearings
  • Hydraulic assist bearing removal for both pitman and side bearings (JC3660 and JC5460)
  • Hydraulic/shim toggle seat adjustment (discharge opening)
  • One smooth and one grooved flywheel
  • Split-hub flywheels
  • Standard left-hand drive (face tension spring)

Specifications


Weight lbs (kg)
Feed Opening inches (mm)
Max Horsepower hp (kW)
JC2236 Jaw Crusher
24,903 (11,296)
22 x 36 (560 x 915)
90-125 (67-93)
JC2248 Jaw Crusher
43,094 (19,547)
22 x 48 (560 x 1220)
125-175 (93-130)
JC3660 Jaw Crusher
107,664 (48,836)
36 x 60 (915 x 1524)
250-300 (186-224)
JC5460 Jaw Crusher
196,258 (89,021)
54 x 60 (1372 x 1524)
350-450 (261-335)
