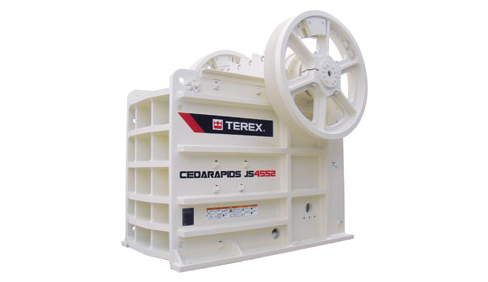

Terex/Cedarapids JS Series Jaws

Double tap to zoom



Features

•  Easy removal jaw die wedge system
•  Quick adjust jaw settings
- Integrated hydraulic assist shim system
- Hydraulic release toggle seat
•  High strength eccentric shaft
- Enlarged diameter with compound geometry
- Drop-forged heat-treated 4340 chrome-nickel-steel
•  Aggressive toggle angle
•  Large spherical self-aligning roller bearings
•  Removable bearing housings
•  High strength submerged arc welded stress relieved base frame
•  Rugged cast steel pitman with grease lubrication
•  Replaceable toe protector (JS3750 and JS4552)
•  Long life rugged tension rod system
•  Machined face jaw die support faces
•  Heavy-duty deep rib jaw dies
•  Full height wrap around stationary die
•  Lift provisions cast in various jaw dies
•  Large diameter split hub flywheels

Specifications

Model
Weight
lbs (kg)
Feed Opening
inches (mm)
Engine Power
hp (kW)
JS3042
43,800 (19,841)
30 x 43 (760 x 1092)
125-175 (93-130)
JS3054
51,800 (23,465)
30 x 54 (760 x 1372)
150-200 (112-149)
JS3750
80,000 (36,288)
37 x 50 (940 x 1270)
200-250 (149-186)
JS4552
104,600 (47,446)
45 x 52 (1143 x 1321)
250-300 (186-224)
