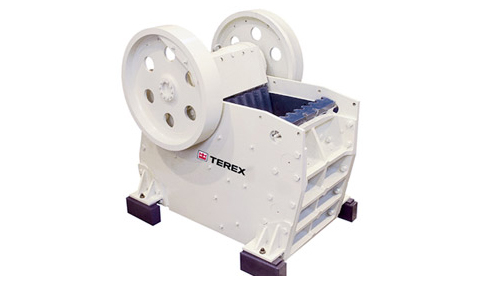

Terex/Cedarapids JW Series Jaws

Double tap to zoom



Features

•  Hydraulic wedge jaw adjustment
- Internally mounted hydraulics
•  Hydraulic tension rod
•  Electric/hydraulic adjust unit
•  Quick change jaw die wedge system
- Side access to stationary die
•  High strength frame
- Four-piece bolted and dowelled construction
- Cast steel front and rear sections
- High strength structural steel side sections
- Machined jaw die support faces
•  Three-piece side cheek plates
•  Reversible corrugated jaw dies
- Wrap around full height stationary jaw die
- Lift slots cast into jaw die
- Extended jaw die frame protection
•  Robust swing jaw design
- Cast steel swing jaw body
- Large spherical self-aligning roller bearings
- Large drop forged steel shaft
•  Replaceable jaw backing plates
•  Left hand flywheel grooved for V-belt drive
•  Bolt-on support feet

Specifications

Model
Weight lbs (kg)
Feed Opening inches (mm)
Engine Power hp (kW)
JW40
26,070 (11830)
25 x 40 (625 x 1000)
120 (90)
JW42
39,100 (17740)
30 x 42 (760 x 1070)
150 (110)
JW55HD
57,860 (26250)
30 x 55 (760 x 1400)
200 (150)
