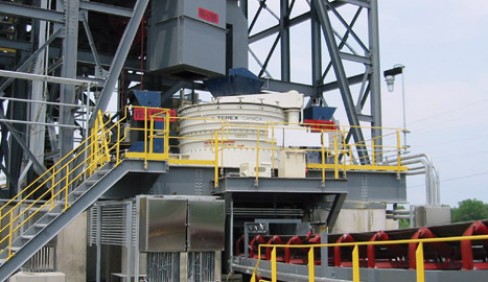

Terex/Cedarapids Vertical Shaft Impact Crushers

Double tap to zoom



Features

  • Option of open table or enclosed rotor designs in combination with anvil ring or rock box.
  • Patented hydraulic lid lifter for quick and easy access.
  • Cast segmented tub and lid liners.
  • Cast tunnel and shroud liners.
  • Motor mount with adjustable take-up.
  • V-belt drive (single or twin motors).
  • Heavy duty pedestal assembly with double self aligning spherical roller bearings.
  • Excellent cubical shaped product.
  • Gradation control.
  • High Product yield.
  • Non-plugging crushing chamber.
  • Variable speed control optional

Specifications


Weight lbs (kg)
Horsepower  hp (kW)
Capacity tph (t)
Canica 1200
8,000 (3,629)
50-150 (37-112)
70 (64)
Canica 1400
12,000 ( 5,443)
100-250 (75-186)
125 (113)
Canica 2000 SD
24,220 (10,986)
200-400 (149-298)
250 (227)
Canica 2000 DD
27,500 (12,474)
400-700 (298-522)
350 (317)
Canica 2050
31,000 (14,061)
400-700 (298-522)
400 (363)
Canica 100
31,200 (14,152)
400-700 (298-522)
400 (363)
Canica 2300
34,000 (15,422)
400-700 (298-522)
500 (454)
Canica 105
40,000 (18,144)
500-800 (373-597)
500 (454)
Canica 2350
34,000 (15,422)
500-800 (373-597)
600 (544)
Canica 2500
51,000 (23,134)
600-1000 (447-746)
800 (726)
Canica 3000
58,000 (26,309)
700-1200 (522-895)
1000 (907)
