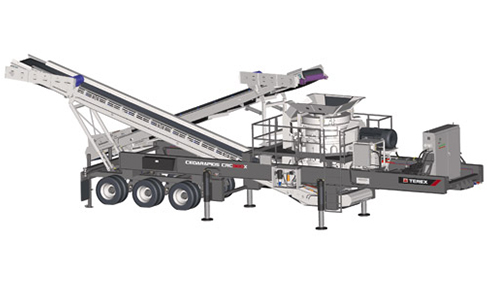

Terex/Cedarapids Terex® Cedarapids CRC380X Portable Cone Plant

Double tap to zoom



Features

The new Terex® Cedarapids CRC380X cone plants are built for portability, especially for applications involving hard abrasive materials. These open circuit plants can be tied in with most any portable crushing operation. They are commonly set up in secondary, tertiary, and quaternary crushing positions. The CRC380X is an all electric plant which can easily be tied into new or existing systems. CRC380X plants are available with a variety of options including feed conveyors and extra length undercrusher conveyors.

Specifications

• High efficiency MVP380X cone crusher with ElJay® Rollercone® roller bearing construction

• Single 300 hp (224 kW) crusher motor with easy adjust cone crusher drive

• Mesh cone hopper extension

• “Straight-line” undercrusher conveyor; 42" x 34'6" (1067 x 10,515 mm); 15 hp (11 kW)

• 3-ply conveyor belt with vulcanized belt splice

• Service platforms around crusher with guard rails and access ladder

• Easy maintenance features

    -  Ratchet cone drive belt tensioning

    -  Conveniently located grease banks

    -  Ground access cone lubrication module

    -  Large undercrusher hinged access panel

• Emergency stop buttons on both sides of frame

• Tandem axle spring suspension

• Eight 295/75 R22.5 tires
