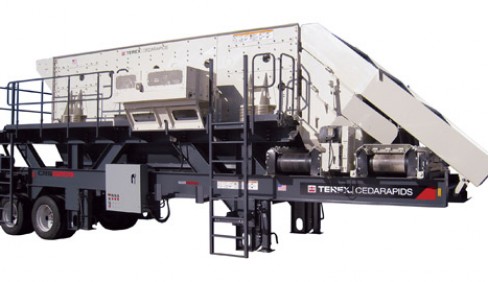

Terex/Cedarapids LJ-TS Series Horizontal Screens

Double tap to zoom



Features

  • Three shaft vibrator mechanism provides high G force along with the efficient oval motion. Adjustable stroke, stoke angle, and speed, to optimize performance.
  • Unique lubrication system with patented internal baffle system and patented hub oil port system to minize lube temperatures for maximum bearing life.
  • Fatigue resistant construction with patented dual o-ring “Sealed for life” Huckbolt® fastener assembly.
  • High-tech rotary non-contact "gland type" oil seal in hooded wheel case cover maximizes seal effectiveness and operating life.
  • Computer designed chrome-moly-nickel gear set with premium metallurgy and optimized tooth profile for smooth running and maximum life.

Specifications

Model
Width x Length ft (mm)
Weight lbs (kg)
Number of Decks
LJ-TSH5162-26
5 x 16 (1524x4880)
12,500 (5670)
2
LJ-TSH5163-26
5 x 16 (1524x4880)
15,300 (6940)
3
LJ-TSH6162-26
6 x 16 (1830x4880)
15,100 (6849)
2
LJ-TSH6163-26
6 x 16 (1830x4880)
19,100 (8664)
3
LJ-TSH6202-32
6 x 20 (1830x6096)
18,260 (8283)
2
LJ-TSH6203-32
6 x 20 (1830x6096)
21,860 (9916)
3
LJ-TSH7202-32
7 x 20 (2134x6096)
22,125 (10036)
2
LJ-TSH7203-32
7 x 20 (2134x6096)
26,400 (11975)
3
LJ-TSH8202-32
8 x 20 (2438x6096)
23,440 (10632)
2
LJ-TSH8203-32
8 x 20 (2438x6096)
28,390 (12878)
3




With 2-1/2 degree slope



LJ-TSS6202-32
6 x 20 (1830x6096)
18,500 (8391)
2
LJ-TSS6203-32
6 x 20 (1830x6096)
22,170 (10060)
3
LJ-TSS7202-32
7 x 20 (2134x6096)
23,300 (10569)
2
LJ-TSS7203-32
7 x 20 (2134x6096)
26,500 (12020)
3




Scalping Screens


LJ-TSH5142-26 HS
5 x 14 (1524x4267)

2
LJ-TSH5162-32 HS
5 x 16 (1524x4880)

2
LJ-TSH6162-38 HS
6 x 16 (1830x4880)

2
