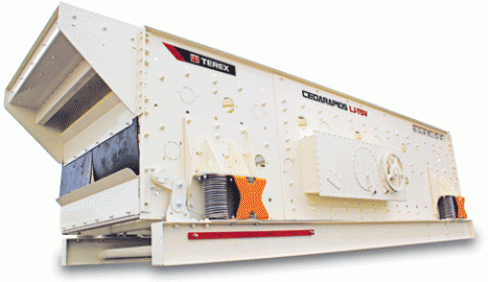

Terex/Cedarapids LJ-TS "V" Series Horizontal Screens

Double tap to zoom



Features

• El-Jay® oval stroke with adjustable angle, stroke and speed
• 25% thicker 5/16" (8 mm) grade 50 high strength steel side plates
• Heavy-duty fully braced single crown tubular steel deck construction
• Spring mounts adjust for 0°, 2.5°, 5°, 7.5° or 10° slope installations
• Exclusive patented and patent-pending features for durability and easy maintenance:
- Low maintenance vibration damper system
- Replaceable screen panel seals (620 models)
- “Flow-through” bearing lubrication
- Baffle splash lubrication system
- Double O-ring sealed for life vibrator construction
• Spherical washer design eliminates sidewall welds
• Huck-bolted screen box construction (no welds)
• Extended life coil spring suspension
• Replaceable bolt-on spring guides
• Gland type non-wearing shaft seal
• Bottom deck feed curtain
• 4' (1219 mm) clamp bars with spherical washer tensioning system
• Extended life V-belt drive with sheaves for 1200 rpm motor
• Enclosed right-hand drive guard, motor mount, and tensioner
• Adjustable speed motor drive sheave and spring loaded belt tension idler
• Self-aligning two row spherical roller bearings
• Synthetic broad range lubrication oil
• Hand access holes with removable covers
• Spray pipe knock-outs
• Shaft tube liners
• Oil level sight glasses

Specifications

Model
Width x Length ft (mm)
Weight lbs (kg)
Number of Decks
LJ-TSV6202-32
6 x 20 (1829x6096)
19,230 (8725)
2
LJ-TSV6203-32
6 x 20 (1829x6096)
22,650 (10275)
3
LJ-TSV7202-38
7 x 20 (2134x6096)
23,000 (10435)
2
LJ-TSV7203-38
7 x 20 (2134x6096)
27,500 (12475)
3
LJ-TSV8202-38
8 x 20 (2438x6096)
24,250 (11000)
2
LJ-TSV8203-38
8 x 20 (2438x6096)
29,500 (13385)
3
