Terex Finlay C-1540RS

Double tap to zoom



Features

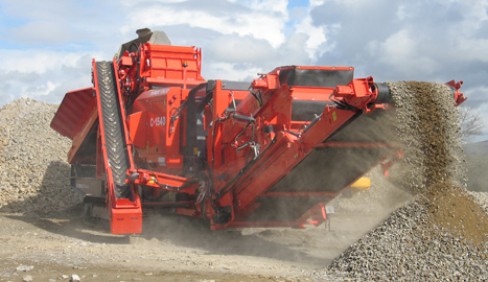

The Terex® Finlay C-1540RS provides the versatility of a crushing and screening plant on one machine. Based on the Terex® Finlay C-1540 this machine features an innovative on onboard recirculating system and detachable sizing screen. If recirculation and sizing of materials is not required the sizing screen can be quickly detached from the machine without the need for lifting equipment.

  • Detachable 12’ x 5’ (3.66m x 1.52m) double deck sizing screen passes oversize material back to the crusher via the on-board recirculating conveyor.
  • Quick and easy detachable screen and fines conveyor for open circuit crushing.
  • The optional mid-grade conveyor in conjunction with the optional lower deck screen, produces a 2nd spec’d product.

Specifications

Net Engine Power:
Tier 3 / Stage IIIA:
Caterpillar C13 Acert 328kW (440hp)
Tier 4i / Stage IIIB:
Scania DC13 331kW (450hp)
Tier 4F / Stage IV:
Scania DC13 331kW (450hp)

Cone Head Diameter:

1000 mm
(40")

Transport Weight:

50,760kg
(111,907lbs)
