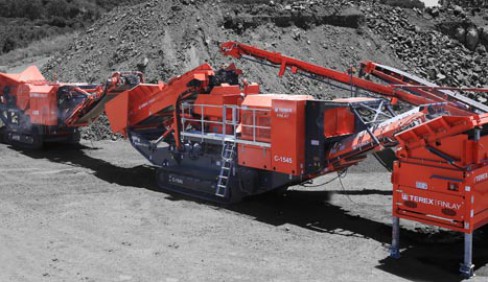

Terex Finlay C-1545

Double tap to zoom



Features

The Terex® Finlay C-1545 is a high capacity and aggressive cone crusher that consistently provides high output capacity and a product with excellent cubicity. This efficient and productive machine incorporates the NEW Terex® 1150 cone crusher driven by direct clutch drive with variable speed, automatic tramp relief and hydraulic closed side setting (CSS) adjustment.
The large hopper/feeder has a metal detection and a purge system to protect the cone and reduce downtime by removing metal contaminants via the purge chute.
Additional benefits include, rapid set up time, ease of maintenance and advanced electronic control system.

  • Fuel efficient direct drive transmission via a clutch.
  • Hydraulic Tramp Relief System with automatic reset protects the chamber and minimises downtime.
  • Metal detection system on feed belt with ‘auto-stop’ protects the cone from tramp metal and the purge system removes contaminants from the machine.

Specifications

Net Engine Power:
Tier 3 / Stage IIIA:
Caterpillar C13 Acert 328kW (440hp)
Tier 4F / Stage IV:
Scania DC13 331kW (450hp)

Cone Head Diameter:

1150mm
(45”)

Transport Weight:

43,440kg
(95,769lbs)
