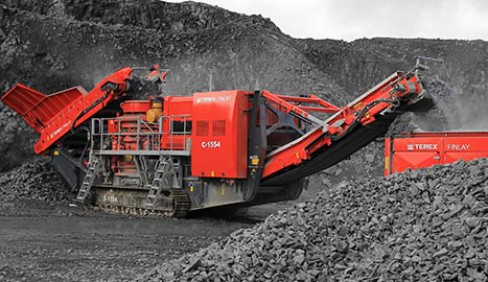

Terex Finlay C-1554

Double tap to zoom



Features

The Terex® Finlay C-1554 is the ultimate mobile solution for any aggregates producer or contractor looking for a high output capacity machine that provides large reduction ratios and an excellent cubical shape.

This aggressive machine incorporates the proven Terex® MVP450x cone crusher that can accept an all in feed and features direct variable speed clutch drive, automatic tramp relief and hydraulic closed side setting (CSS) adjustment.

The large hopper/feeder on the plant has an automated metal detection and a purge system designed to protect the cone and reduce downtime by removing metal contaminants via the purge chute.

  • Fully Hydraulic CSS Adjustment with electronic monitoring system ensures ease of operation.
  • Fuel efficient direct drive transmission through wet clutch.
  • Hydraulic Tramp Relief System with automatic reset protects the chamber and minimises downtime.
  • Metal detection system on feed belt with ‘auto-stop’ protects the cone from tramp metal and the purge system removes contaminants from the machine.

Specifications

Net Engine Power:
Tier 2 / Equivalent:
CAT C18 Acert 571 kW (765 hp)

Cone Head Diameter:

1380 mm
(54")

Transport Weight:

61,000kg
(134,614lbs)
