Features

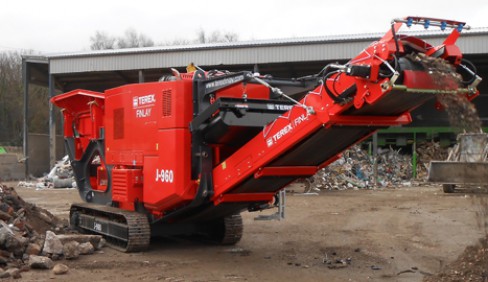

The Terex Finlay J-960 is a compact and aggressive mobile jaw crusher incorporating a proven Terex direct drive single toggle jaw crusher which gives high capacity with large reduction capacities. The plant features a heavy duty hopper with integrated vibrating grizzly and pan feeder as standard. Its compact size, excellent mobility and high crushing capacity even at tight settings in recycling and hard rock operations make the J-960 ideal for small to medium sized operators.

  • The robust high performance single toggle jaw crusher provides high capacity with large reduction ratio’s.
  • Hydraulically folding feed hopper incorporating a integrated heavy duty stepped pan and feeder
  • Direct drive jaw chamber gives efficient production and application versatility
  • Selectable discharge to by-pass conveyor or main conveyor maximizes production and reduces wear on the chamber by removing fine material before it enters the jaw
  • Its compact size, quick set-up times, ease of transport and user friendly operational features make the J-960 ideal for all sizes of operators

Specifications

Net Engine Power:
Tier 3 / Stage IIIA:
Caterpillar C7.1 Tier 3 ACERT. 140kW (188hp)
Tier 4/ StageIV:
Caterpillar C7.1 140kW (188hp)

Inlet Opening:

900x 600 mm
(35" x 24")

Transport Weight:

29,250kg
(64,485lbs)
