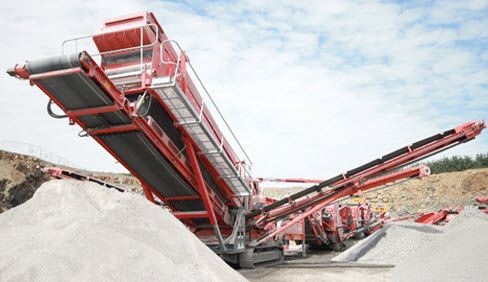

Terex Finlay 694+ Dual Power

Double tap to zoom



Features

The dual powered Terex Finlay 694+ inclined screen offers operators the flexibility to power the plant either by an electrical connection or diesel/hydraulic configuration. The plant features a triple deck screen configuration providing three full sized 6.1m x 1.525m (20’ x 5’ ) screens. An innovative hydraulically folded fourth (oversize plus) conveyor allows simple adjustment with variable tilt and slew discharge, between 18 degree and 30 degree, for recirculating in closed circuit with a crusher or stockpiling of finished material.

  • The plant’s electrically driven power system provide significant cost advantages and efficiencies.
  • Superior performance in dusty applications and in high altitude environments.
  • The triple deck 6.1m x 1.525m (20’ x 5’) screen box with full catwalk access is the largest and most accessible in it’s class.
  • Maximum utilisation of three 6.1m x 1.525m (20’ x 5’) decks provide ultra-efficient screening capacities even at small aggregate sizes.
  • Screen box angle can be hydraulically adjusted to an angle between 18° - 30°

Specifications

Net Engine Power:
Tier 3 / Stage IIIA:
Caterpillar C4.4 97kW (130hp)
Tier 4i / Stage IIIB:
Caterpillar C4.4 98kW (131hp)
Tier 4F / Stage IV:
Caterpillar C4.4 98kW (131hp)
2 x 37kW IE3 Electric Motors

No. Stockpilers:

4

Transport Weight:

40,000Kgs
(88 184 lbs)
