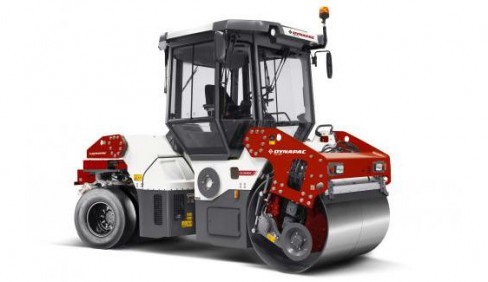

Dynapac CC2300C

Double tap to zoom



Features

Sorry, currently there are no features but check back with us later.

Specifications

Masses
Max. operating mass 19,100 lbs
Operating mass (incl. ROPS) 16,800 lbs
Module mass (front/rear) 8,950 lbs/ 7,850 lbs
Traction
Speed range 0-7,5 mph
Vertical oscillation ±7
Theor. gradeability 46 %
Compaction
Wheel load 1.950 (pounds/wheel)
Centrifugal force (high/low amplitude) 16,190/ 13,260 lb
Nominal amplitude (high/low) 0.020/ 0.008 in
Static linear load 152 lbs/in
Vibration frequency (high/low amplitude) 2,880/ 4,020 vpm
Water tank 198 gal
Emulsion tank 21 gal
Split drums Yes
Engine
Manufacturer/Model Deutz TCD 3.6 IIIB/T4i
Type Water cooled turbo diesel
Rated power, SAE J1995 100 hp @ 2,200 rpm
Fuel tank capacity 34 gal
Alternative Engine
Manufacturer/Model Cummins QSB 3.3 IIIA/T3
Type Water cooled turbo diesel
Rated power, SAE J1995 99 hp @ 2,200 rpm
Hydraulic system
Driving Axial piston pump with variable displacement.
Axial piston motors (4) with variable displacement.
Vibration Axial piston pump with variable displacement.
Axial piston motor with constant displacement.
Steering Gear pump with constant displacement.
Service brake Hydrostatic in forward and reverse lever.
Parking/Emergency brake Failsafe multidisc brake in both drums.
