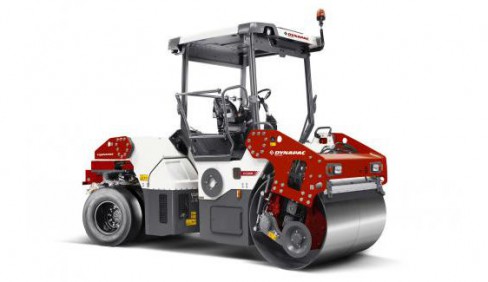

Dynapac CC3200C

Double tap to zoom



Features

Sorry, currently there are no features but check back with us later.

Specifications

Masses
Max. operating mass 18,700 lbs
Operating mass (incl. ROPS) 17,000 lbs
Module mass (front/rear) 9,000 lbs/ 8,000 lbs
Traction
Speed range 0-7,5 mph
Vertical oscillation ±7
Theor. gradeability 45 %
Compaction
Wheel load 2,000 (pounds/wheel)
Centrifugal force (high/low amplitude) 20,250/ 16,880 lb
Nominal amplitude (high/low) 0.028/ 0.012 in
Static linear load 132 lbs/in
Vibration frequency (high/low amplitude) 2,880/ 4,020 vpm
Water tank 198 gal
Emulsion tank 21 gal
Engine
Manufacturer/Model Deutz TCD 3.6 HT T4f
Type Water cooled turbo diesel
Rated power, SAE J1995 55 kW (75 hp ) @ 2,200 rpm
Fuel tank capacity 34 gal
Alternative Engine
Manufacturer/Model Cummins QSB 3.3 IIIA/T3
Type Water cooled turbo Diesel
Rated power, SAE J1995 99 hp @ 2,200 rpm
Alternative Engine
Manufacturer/Model Deutz TCD 3.6 IIIB/T4i
Type Water cooled turbo Diesel
Rated power, SAE J1995 75 kW(100 hp) @ 2200 rpm
Hydraulic system
Driving Axial piston pump with variable displacement.
Axial piston motors (3) with variable displacement.
Vibration Axial piston pump with variable displacement.
Axial piston motor with constant displacement.
Steering Gear pump with constant displacement.
Service brake Hydrostatic in forward and reverse lever.
Parking/Emergency brake Failsafe multidisc brake in both drums.
