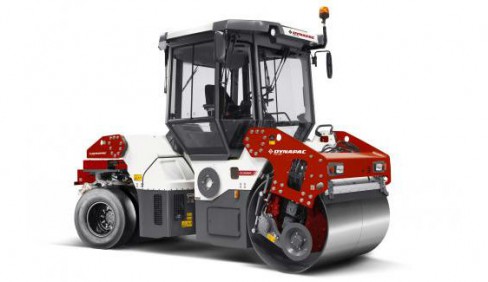

Dynapac CC3300C

Double tap to zoom



Features

Sorry, currently there are no features but check back with us later.

Specifications

Masses
Max. operating mass 19,600 lbs
Operating mass (incl. ROPS) 17,400 lbs
Module mass (front/rear) 9,500 lbs/ 7,900 lbs
Traction
Speed range 0-7,5 mph
Vertical oscillation ±7
Theor. gradeability 43 %
Compaction
Wheel load 1,980 (pounds/wheel)
Centrifugal force (high/low amplitude) 17,760/ 14,390 lb
Nominal amplitude (high/low) 0.02/ 0.01 in
Static linear load 140 lbs/in
Vibration frequency (high/low amplitude) 2,880/ 4,020 vpm
Water tank 198 gal
Emulsion tank 21 gal
Split drums Yes
Engine
Manufacturer/Model Deutz TCD 3.6, IIIB/T4i
Type Water cooled turbo diesel
Rated power, SAE J1995 100 hp @ 2,200 rpm
Fuel tank capacity 34 gal
Alternative Engine
Manufacturer/Model Cummins QSB 3.3, IIIA/T3i
Rated power, SAE J1995 74 kW (99 hp ) @ 2,200 rpm
Hydraulic system
Driving Axial piston pump with variable displacement.
Axial piston motors (4) with variable displacement.
Vibration Axial piston pump with variable displacement.
Axial piston motor with constant displacement.
Steering Gear pump with constant displacement.
Service brake Hydrostatic in forward and reverse lever.
Parking/Emergency brake Failsafe multidisc brake in both drums.
