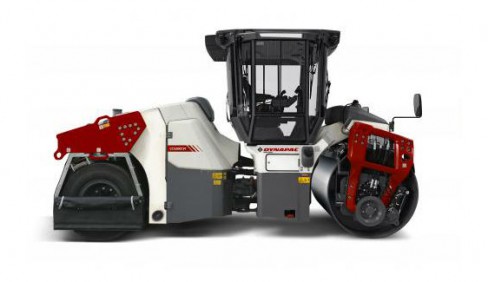

Dynapac CC4200C VI

Double tap to zoom



Features

Sorry, currently there are no features but check back with us later.

Specifications

Masses
Max. operating mass 24,300 lbs
Operating mass (incl. ROPS) 20,700 lbs
Module mass (front/rear) 11,000 lbs/ 9,700 lbs
Traction
Speed range 0-7.5 mph
Vertical oscillation ±7°
Theor. gradeability 41 %
Compaction
Wheel load 2,425 lbs/wheel
Centrifugal force (high/low amplitude) 28,780/ 18,880 lb
Nominal amplitude in
Nominal amplitude (high/low) 0.031/ 0.012 in
Static linear load 167 lbs/in
Vibration frequency (high/low amplitude) 3,060/ 4,020 vpm
Water tank 180 gal
Emulsion tank 53 gal
Water tank (front drum steering) 143 gal
Engine
Manufacturer/Model Cummins QSF3.8 IV/T4f
Type Water cooled turbo Diesel with After Cooler
Rated power, SAE J1995 97 kW (130 hp ) @ 2,200 rpm
Fuel tank capacity 48 gal
DEF tank capacity 4 gal
Alternative Engine
Manufacturer/Model Cummins QSF3.8 IIIA/T3
Type Water cooled turbo Diesel with After Cooler
Rated power, SAE J1995 104 kW (140 hp ) @ 2,200 rpm
Fuel tank capacity 48 gal
Hydraulic system
Driving Axial piston pump with variable displacement.
Radial piston motors (3) with variable displacement.
Vibration Axial piston pump with variable displacement.
Axial piston motor with constant displacement.
Steering Gear pump with constant displacement.
Service brake Hydrostatic in forward and reverse lever.
Parking/Emergency brake Failsafe multidisc brake in drum and wheel motors.
