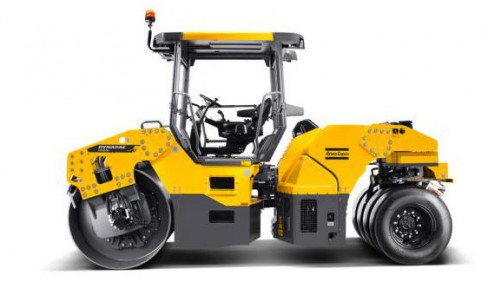

Dynapac CC5200C

Double tap to zoom



Features

Sorry, currently there are no features but check back with us later.

Specifications

Masses
Max. operating mass 24,000 lbs
Operating mass (incl. ROPS) 22,000 lbs
Module mass (front/rear) 12,450 lbs/ 9,550 lbs
Traction
Speed range 0-7,5 mph
Vertical oscillation ±8°
Theor. gradeability 35 %
Compaction
Wheel load 2390 (pounds/wheel)
Centrifugal force (high/low amplitude) 34,650/ 22,720 lb
Nominal amplitude (high/low) 0.031/ 0.012 in
Static linear load 162 lbs/in
Vibration frequency (high/low amplitude) 3,060/ 4,020 vpm
Water tank 238/304 gal
Emulsion tank 21 gal
Engine
Manufacturer/Model Cummins QSB 4.5, IIIB/T4i
Type Water cooled turbo diesel
Rated power, SAE J1995 130 hp @ 2,200 rpm
Fuel tank capacity 63 gal
Alternative Engine
Manufacturer/Model Cummins QSB 4.5, IIIA/T3
Rated power, SAE J1995 93 kW (125 hp ) @ 2,200 rpm
Hydraulic system
Driving Axial piston pump with variable displacement.
Axial piston motors (3) with variable displacement.
Vibration Axial piston pump with variable displacement.
Axial piston motor with constant displacement.
Steering Gear pump with constant displacement.
Service brake Hydrostatic in forward and reverse lever.
Parking/Emergency brake Failsafe multidisc brake in drum and wheel motors.
