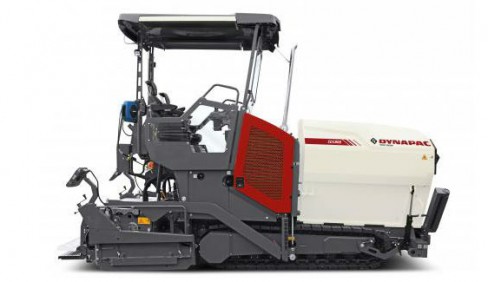

Dynapac F1800C

Double tap to zoom



Features

PLATFORM

Slide out seat stations with pivotable seats
Single slide on operator panel
Extendable roof for weather protection

AUGER

320 mm diameter cast flights
Hydraulic height adjustment (200 mm)
Auger width – 1,7 m to 3,15 m
Proportional sensors/speed control

SCREED V3500

Dual tube design
Max paving width 4,70 m

ENGINE

2.9L TD 4 cylinder 54kW Deutz engine
Tier 4 / Tier 3
No regeneration process needed

PUSH ROLLER

60 mm fore-aft adjustment with
6° maximum pivot angle
Safe impact system available for all models

HOPPER

10.5 t hopper with front flaps
Dumping height – 502 mm

CONVEYOR

700 mm independent conveyor
Individual tensioner at front
Proportional sensors/speed control

TRACK DRIVE

2,09 m track
260 mm track pads

WHEEL DRIVE

5 m turning circle (external)
Reduced wear in the wheels
Rear wheel 385/65 R22,5

TRUCKASSIST

Safe truck docking
Low noise operation
Robust design

FUME SUCTION

Superior work environment
Design integrated to the main frame
Doesn’t affect visibility

OPTIONS

Safe impact push roller
Central lubrication
Hopper front flaps
Fume suction

Specifications

Masses
Paver weight (incl. standard screed) 23,100 lbs
Traction
Maximum paving speed 295,280 fpm
Transport speed 218.72 fpm
Alternative Engine
Manufacturer/Model Deutz, 2,9L TD 4 Cylinder
Rated power 54 kW @ 2200 rpm
Emissions according to Tier 3/Tier 4
Electrical system 24 V
Fuel tank capacity 19.29 gal
Operation
Operational controls Conventional
Platform Extendable roof, slidable seat station sliding/tilting control panel, swivel seat
Conveyor
Conveyor control Automatic with paddles
Conveyor type Dual bar feeder
Conveyor width 27.56 in
