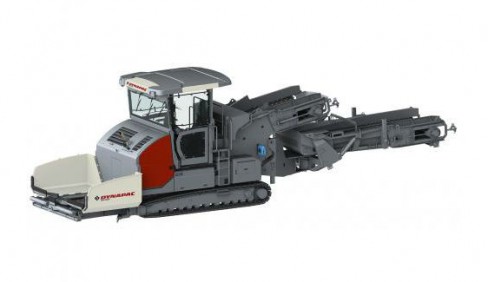

Dynapac MF2500CS W. SwingApp

Double tap to zoom



Features

Being the only 2.5 meter feeder on the market, the Dynapac MF2500CS combines easy and cost effective transport - no permissions needed - with impressive feeding capacity. The core of the Dynapac MF2500CS is its high-performance conveying system, which can transport 30 tons of gravel, sand or asphalt to its destination in just 35 seconds.



AMAZING PRODUCTIVITY

Empties a truck in 35 seconds thanks to a wide belt and large tunnel. The bulk material transfer ensures an homogenous mix.

LOW COST OF OWNERSHIP

With a width of just 2.5 m, the paver doesn’t need any special permits when being moved. The high feed capacity and low fuel consumption also keep running costs low.

LONG LASTING BELT

The rubber belt is directly mounted on metal braces, which eliminates the temperature impact from the hot asphalt on the belt.

COMING HOME

The working light can be switched on with the central battery switch from ground level for convenient access to the operator platform in the dark.

ERGONOMIC WORKPLACE

Spacious platform with pivotable seats and dashboard for an ergonomic working place and excellent view. Optional weather house is available.

HOMOGENEOUS MATERIAL

The wide and high conveyor ensures smooth material flow with minimal segregation.

MODULAR SERVICE CONCEPT

The modular design of the MF2500 with the SD pavers means they have a lot of parts in common.

INTEGRATED WORKING LIGHTS

Comprehensive lighting system for night work: 4 LED lights integrated in teh canopy, 2 for the conveyor, 1 at the back. Optional 24V LED-lighting balloon can be easily plugged in.

SWINGAPP

You can easily convert the standard short feeder to an offset feeder in just 45 minutes, using Swingapp.

EASY CLEANING

The integrated release agent spray system makes cleaning more convenient.

LAPTOP STATION

The feeder features a lockable rain-protected laptop station with a 24V plug for a convenient working place.

AUTOMATIC DISTANCE SENSOR

The automatic distance sensor keeps the distance betweem feeder and paver constant on the pre-setted value.

Specifications

Masses
Transport mass 54,013.54 lbs
Traction
Transport speed fpm
Operating speed, max 82 ft/min
Transport speed, max 2.5 mph
Engine
Manufacturer/Model Cummins QSB 6.7-C260
Rated power, SAE J1995 225 hp
Electrical system 24 V
Emissions according to EU 3A/3B (TIER3/4i)
Fuel tank capacity 79 gal
Conveyor
Conveyor type Rubber belt on two chains,
mounted with metal stiffeners
Conveyor speed Contantly variable
Conveyor width 47.24 in
Max. feed capacity t/h
Feeding height (max/min) 130 in / 43 in
Feed capacity 4000 t/h
Feed capacity, optional swing conveyor 2000 t/h
