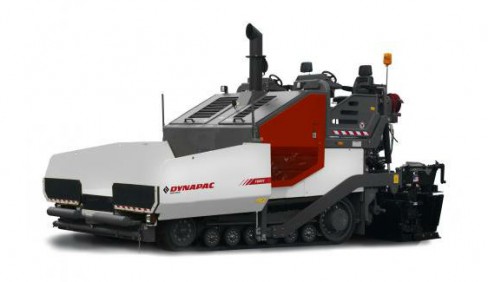

Dynapac F800T

Double tap to zoom



Features

  • Intelligent Fumes Management
    Combined engine exhaust and fumes delivery in dual stack
  • Powerful Drive System
    173 hp T4final Cummins Engine with high capacity cooling system
  • Optimized Material Flow
    13.5 Ton Hopper Capacity with double bar conveyor system for smooth material flow
  • Powered Apron
    Contains Material Spillage
  • Safe Impact System
    Hydraulic Push Roller for reduced impact from Trucks
  • Operator in control
    Dual swing out simplified operator consoles for best in class operator comfort
  • Strong Auger
    Slim auger drive with 17" dia flights.  Auger height can be adjusted up to 10".
  • Proven Screed
    Flexible and easy to work with Carlson Screed
  • Optimized Tow arm geometry
    achieving paving thickness of -6 to +12 inches
  • Rugged Track system
    High speed precise track system for constant speed
  • Intelligent Fumes Management
    Combined engine exhaust and fumes delivery in dual stack
  • Powerful Drive System
    173 hp T4final Cummins Engine with high capacity cooling system
  • Optimized Material Flow
    13.5 Ton Hopper Capacity with double bar conveyor system for smooth material flow
  • Powered Apron
    Contains Material Spillage
  • Safe Impact System
    Hydraulic Push Roller for reduced impact from Trucks
  • Operator in control
    Dual swing out simplified operator consoles for best in class operator comfort
  • Strong Auger
    Thinnest auger drive with 17" dia flights.
  • Proven Screed
    Flexible and easy to work with Carlson Screed
  • Smooth ride
    High flotation sand rib tires for smooth ride and comfort
  • Highly maneuverable front wheel drive
    With less than 5 ft turning radious. Optional 6x4 or 6x6 wheel drive

Specifications

Masses
Paver weight (incl. standard screed) 39,200 lbs
Tractor weight 34,000 lbs
Traction
Paving speed 0 - 89 fpm
Maximum paving speed 200 fpm
Transport speed 8.5 mph
Engine
Manufacturer/Model Cummins QSB 6.7-173
Emissions according to Tier 4F
Type 6 cylinder water cooled diesel
engine with hydraulically driven fan
Rated power, SAE J1995 173 hp @ 2,300 rpm
Electrical system 24V / 70A
Generator (tractor mounted) 34 kVA
Fuel tank capacity 85 gal
Operation
Control consoles Dual Swing out
Dashboard Ergonomic dashboard with Multifunction
display on each console
Conveyor
Conveyor type Dual bar feeder
Conveyor width 2 x 20 in
Conveyor control Two independent conveyor half's with
infinitely variable speed. Both half's can
be controlled separately. Conveyor control
independent of Augers by Ultrasonic sensors.
