Features

Interim Tier IV EPA Approved Engine

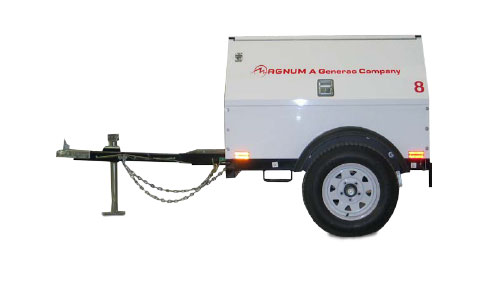

Magnum recognizes environmental responsibility and continues to meet emission regulations with the addition of their Interim & Tier 4 Generator line. The MLG8 generator is powered by a Kubota diesel engine. Proven power you can trust, while maximizing fuel efficiency and high performance.
Affordable, Highly Mobile Power

The MLG8 diesel generator provides just the right combination of output, portability, ruggedness, efficiency and affordability for on-the-go, single smaller-load, single phase power needs.
Features
Tough

  • Full tubular steel frame, lockable enclosure
  • Durable, fade resistant, baked on white powder coat finish
  • Stainless steel hinges, exterior hardware and pad lockable door latches

Reliable

  • Key switch to preheat (glow plug), start & stop
  • Automatic low oil level / high temp shutdown alerts
  • 40A Start limit main breaker
  • 2 year - 2,000 hour warranty
  • Marathon voltage regulation within +/- 1%

Easy to Use

  • Self-priming 3 cylinder Kubota engine
  • External convenience outlets with individual breakers
  • External emergency stop switch

Specifications

Output

3 Phase - Standby kW (kVA) N/A
Amps 480V (208V) N/A
3 Phase - Prime kW (kVA) N/A
Amps 480V (208V) N/A
1 Phase - Standby kW (kVA) 8.0 (8.0) - Kubota
Amps 240V 30
1 Phase - Prime kW (kVA) 6.0 (6.0)
Amps 240V 25
AC Voltage 1-phase 120, 240
AC Voltage 3-phase N/A
Frequency Hz 60
Power Factor 1.0 (1 Phase)
Generator - Brand / Type / Insulation Marathon / Brushless / F
Sound (dB(A) 23 ft @ prime) 70

Size and Weight

Skid Mounted - L x W x H in (m) N/A
Dry Weight lbs (kg) N/A
Operating Weight lbs (kg) N/A
Trailer Mounted - L x W x H in (m) 105 x 68 x 56
  (2.67 x 1.73 x 1.42)
Dry Weight lbs (kg) 1030 (467)
Operating Weight lbs (kg) 1250 (567)

Engine

Type Tier 4
Brand Kubota
Aspiration Natural
Power - Prime @ 1800 rpm hp (kWm) 13.5 (10.1)
Displacement cubic in (L) 68.53 (1.12)
Cylinders 3
Speed rpm 1800
Fuel Consumption - Prime gph (Lph) 0.70 (2.65)

Capacities

Fuel Tank gal (L) 30 (114)
Approximate Run Time hrs 48
Coolant qt (L) 4.5 (4.2)

Electrical Distribution

Battery - 12V 1 - 12V 440 CCA Wet Cell
Main Circuit Breaker Size A 40
Voltage Selection N/A
Voltage Regulation +/-1%
120V - 20A GFI Duplex Outlets - qty 2
240V - 30A Twist Lock Outlets - qty 1
240V - 50A Twist Lock Outlets - qty N/A

Trailer

Number of Axles 1
Capacity - Axle Rating lbs (kg) 2200 (998)
Tire Size in 13
Brakes N/A
Hitch 2" Ball
Maximum Tire Pressure psi 50

Options

Powertrain (Engine/Gen) • 60/40 Coolant
  • Heated Fuel Filter
  • Engine Heater - Lower Radiator Hose
  • Oil Drain Valve Kit
Controls • Battery, 720 CCA Gel Cell
  • Battery, 720 CCA Wet Cell
  • Battery, 685 CCA Gel Cell
  • No Battery
  • Battery Disconnect, Lockable
  • Battery Charger, 2 Amp
Cabinet/Fuel Tank • Interior Cabinet Light
  • Level Indicator
  • 56 Gallon Fuel Tank
  • Fuel Tank Cap - Vent w/ Lanyard
  • Spare Tire & Carrier
  • Lift Structure
  • Liquid Containment/Quiet Pack
  • Outrigger Package
  • Tamper Pack
Trailer • Tube & Sleeve Jack
  • Combo Hitch - 2.5" Ring/2" Ball
  • 2.5" Ring
  • 3" Ring
  • 3" Ring (1.625 TH)
  • Plug Adapter, 4 Flat to 6 Round
  • Plug Adapter, 4 Flat to 7 Pin
  • Plug Adapter, 4 Flat to 7 Round Spade
