Features

Affordable Mid-Sized Power

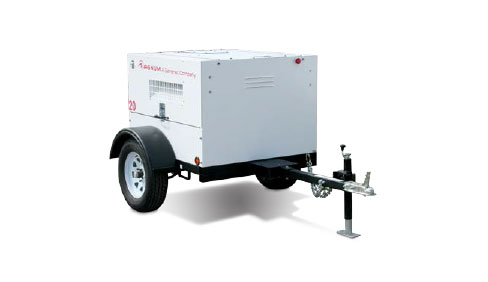

The MLG20 diesel generator provides affordable, single phase power with just the right combination of hardworking output and efficiency.
Features
Quality

Full tubular steel, lockable enclosure
Durable, fade resistant, white baked on powder coat finish
Stainless steel hinges, exterior hardware and pad lockable door latches

Reliable

CSA Certified
Key switch to preheat (glow plugs), start & stop
Automatic low oil/high temp shutdowns
100 Amp start limit main breaker
2 year - 2,000 hour warranty
Marathon voltage regulation within +/- 1%

Easy to Use

Self-priming 4 cylinder Isuzu engine
Six external convenience outlets with Individual breakers
Externally emergency stop switch

Specifications

Output

3 Phase - Standby kW (kVA) N/A
Amps 480V (208V) N/A
3 Phase - Prime kW (kVA) N/A
Amps 480V (208V) N/A
1 Phase - Standby kW (kVA) 20.0 (20.0)
Amps 240V 83
1 Phase - Prime kW (kVA) 19.0 (19.0)
Amps 240V 79
AC Voltage 1-phase 120, 240
AC Voltage 3-phase N/A
Frequency Hz 60
Power Factor 1.0 (1 Phase)
Generator - Brand / Type / Insulation Marathon / Brushless / F
Sound (dB(A) 23 ft @ prime) 70

Size and Weight

Skid Mounted - L x W x H in (m) N/A
Dry Weight lbs (kg) N/A
Operating Weight lbs (kg) N/A
Trailer Mounted - L x W x H in (m) 105 x 68 x 56
  (2.67 x 1.73 x 1.42)
Dry Weight lbs (kg) 1471 (667)
Operating Weight lbs (kg) 1761 (799)

Engine

Type Tier IV
Brand Isuzu
Aspiration Turbo
Power - Prime @ 1800 rpm hp (kWm) 36.2 (27.0)
Displacement cubic in (L) 133 (2.18)
Cylinders 4
Speed rpm 1800
Fuel Consumption - Prime gph (Lph) 2.1 (7.8)

Capacities

Fuel Tank gal (L) 50 (190)
Approximate Run Time hrs 24
Coolant qt (L) 12 (11.3)

Electrical Distribution

Battery - 12V 1 - 12V 720 CCA Wet Cell
Main Circuit Breaker Size A 100
Voltage Selection N/A
Voltage Regulation +/-1%
120V - 20A GFI Duplex Outlets - qty 2
240V - 30A Twist Lock Outlets - qty 2
240V - 50A Twist Lock Outlets - qty 2

Trailer

Number of Axles 1
Capacity - Axle Rating lbs (kg) 2200 (998)
Tire Size in 15
Brakes N/A
Hitch 2" Ball
Maximum Tire Pressure psi 50

Options

Powertrain (Engine/Gen) • 60/40 Coolant
  • Heated Fuel Filter
  • Engine Heater - Lower Radiator Hose
  • Oil Drain Valve Kit
Controls • Battery, 720 CCA Gel Cell
  • Battery, 685 CCA Gel Cell
  • No Battery
  • Battery Disconnect
  • Battery Charger
  • Alternative Outlet Panel
Cabinet/Fuel Tank • Interior Cabinet Light
  • Level Indicator
  • 56 Gallon Fuel Tank
  • Fuel Tank Cap - Vent w/ Lanyard
  • Spare Tire & Carrier
  • Lift Structure
  • Liquid Containment/Quiet Pack
Trailer • Tube & Sleeve Jack
  • Combo Hitch - 2.5" Ring/2" Ball
  • 2.5" Ring
  • 3" Ring
  • 3" Ring (1.625 TH)
  • Plug Adapter, 4 Flat to 6 Round
  • Plug Adapter, 4 Flat to 7 Pin
  • Plug Adapter, 4 Flat to 7 Round Spade
  • Outrigger Package
