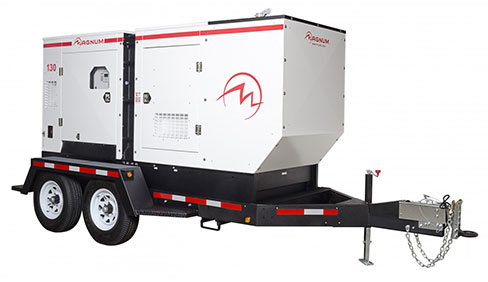

Generac Magnum MMG 130 Mobile Generator Interim Tier 4

Double tap to zoom



Features

Reliable engine performance and reduced emissions walk hand in hand in Magnum Generator models as we keep pace with emissions technology meeting required emissions regulations. The MMG 130 is powered by an Interim Tier 4 John Deere PowerTech engine.

The MMG 130 is powered by a John Deere PowerTech engine which utilizes a catalyzed exhaust filter that contains a Diesel Oxidation Catalyst (DOC) and a Diesel Particulate Filter.(DPF) The DOC reacts with exhaust gases to reduce the carbon monoxide, hydrocarbons and some particulate matter(PM). The downstream DPF traps and holds the remaining PM, which are oxidized within the DPF through a continuous process called passive regeneration.
Features
Reliable

  • Voltage regulation is plus or minus 1%
  • 342 gallon fuel capacity standard for 44 hours of run time
  • Air filter condition indicator on control panel
  • 2 year - 2,000 hour warranty
  • Low coolant shutdown

Durable

  • White aluminum textured powder coat enclosure, sound attenuated baffles and insulation to reduce noise, 68 dBA at prime
  • Fully lockable enclosure with stainless steel exterior hardware
  • Industrial strength steel skid frame and dual axle trailer
  • Central lift structure and convenient ladder on center of generator

Microprocessor Controlled for Safety

  • Engine & generator protection with our advanced Magnum Digital Controller (MDC)
  • Fuel pressure monitoring
  • Oil pressure monitoring
  • Coolant monitoring
  • Battery voltage monitoring
  • Gen voltage monitoring
  • Over-speed monitoring
  • Over/under current monitoring
  • Generator over/under frequency monitoring

Easy to Use

  • Voltage selector switch (single phase & two 3-phase)
  • Electronic governor
  • Lugs and lug box safety switch, if cover is opened circuit breaker is tripped
  • Several convenience outlets with individual breakers
  • Durable external emergency E-stop switch
  • External fuel fill with lockable cap
  • Automatic remote start capable, located on control panel

Specifications

Output Pending CSA
3 Phase - Standby kW (kVA) 107 (134)
Amps 480V (208V) 161 (372)
3 Phase - Prime kW (kVA) 98 (122)
Amps 480V (208V) 147 (339)
1 Phase - Standby kW (kVA) 96 (96)
Amps 240V 400
1 Phase - Prime kW (kVA) 90 (90)
Amps 240V 374
AC Voltage 1-phase 120, 139, 208, 220, 240, 277
AC Voltage 3-phase 208, 220, 440, 480
Frequency Hz 60
Power Factor 1.0 (1 Phase) / .8 (3 Phase)
Generator - Brand / Type / Insulation Marathon / Brushless / H
Sound (dB(A) 23 ft @ prime)
Size and Weight
Skid Mounted - L x W x H in (m) 144 x 50 x 77
Dry Weight lbs (kg) 5444 (2469)
Operating Weight lbs (kg) 7929 (3596)
Trailer Mounted - L x W x H in (m) 210 x 86 x 93
Dry Weight lbs (kg) 6840 (3102)
Operating Weight lbs (kg) 9325 (4230)
Engine
Type Interim Tier IV
Brand John Deere PE4045HFG93
Aspiration Turbo
Power - Prime @ 1800 rpm hp (kWm) 152 (113)
Displacement cubic in (L) 275 (4.5)
Cylinders 4
Speed rpm 1800
Fuel Consumption - Prime gph (Lph) 7.4 (28.0)
Capacities
Fuel Tank gal (L) 342 (1295)
Approximate Run Time hrs 44
Coolant qt (L) 31.5 (29.8)
Electrical Distribution
Battery - 12V 1 - 12V 1000 CCA
Main Circuit Breaker Size A 450
Voltage Selection 3 Position Switch (lockable)
Voltage Regulation +/-1%
120V - 20A GFI Duplex Outlets - qty 2
240V - 30A Twist Lock Outlets - qty N/A
240V - 50A Twist Lock Outlets - qty 3
Trailer
Number of Axles 2
Capacity - Axle Rating lbs (kg) 6000 (2722)
Tire Size in 16
Brakes Surge
Hitch 3" Ring
Maximum Tire Pressure psi 75
Options
Powertrain (Engine/Gen) • Engine Heater (Kim Hotstart)
• 60/40 Coolant
• SuperStart Generator
Controls • Battery Disconnect
• Battery Charger
• 4 Position Phase Switch
• Battery Disconnect, Lockable
• Battery Charger, 2 Amp
• 4 Position Phase Switch
• Buck Transformer Kit
• Cam Locks
Cabinet/Fuel Tank • 36 hr Fuel Tank
• Double Wall Standard Fuel Tank
• Containment
• Interior Cabinet Light
• Control Panel Light
• Auxiliary Strobe/Audible Indication
• Fire Extinguisher
Trailer • 2 5/16" Ball
• Electric Brakes
• Spare Tire/Wheel Kit
