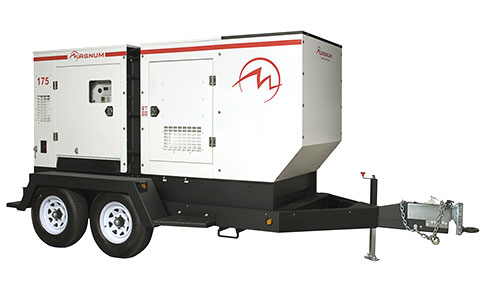

Generac Magnum MMG 175 Mobile Generator Interim Tier 4

Double tap to zoom



Features

Moving Forward with Emissions Technology

Reliable engine performance and reduced emissions walk hand in hand in Magnum Generator models as we keep pace with emissions technology meeting required emissions regulations. The MMG 175 generator, the first of a full line of Interim Tier 4 models powered by an Interim Tier 4 John Deere PowerTech engine.
Making the Difference - DOC/DPF Exhaust Filter

The MMG175 is powered by a John Deere PowerTech engine which utilizes a catalyzed exhaust filter that contains a Diesel Oxidation Catalyst (DOC) and a Diesel Particulate Filter(DPF). The DOC reacts with exhaust gases to reduce the carbon monoxide, hydrocarbons and some particulate matter (PM). The downstream DPF traps and holds the remaining PM, which are oxidized within the DPF through a continuous process called passive regeneration.

Powered by a John Deere PowerTech engine which utilizes a catalyzed exhaust filter that contains a Diesel


Reliable

  • Voltage regulation is plus or minus 1%
  • 342 gallon fuel capacity standard for 29 hours of run time
  • Air filter condition indicator on control panel
  • 2 year - 2,000 hour warranty
  • Low coolant shutdown

Durable

  • White aluminum textured powder coat enclosure, sound attenuated baffles and insulation to reduce noise, 68 dBA at prime
  • Fully lockable enclosure with stainless steel exterior hardware
  • Industrial strength steel skid frame and dual axle trailer
  • Central lift structure and convenient ladder on center of generator

Microprocessor Controlled for Easy Operation

  • Engine & generator protection with our Advanced Digital Controller
  • Fuel pressure monitoring
  • Oil pressure monitoring
  • Coolant monitoring
  • Battery voltage monitoring
  • Gen voltage monitoring
  • Overspeed monitoring
  • Over/under current monitoring

Easy to Use

  • Voltage selector switch (single phase & two 3-phase)
  • Electronic governor
  • Lugs and lug box safety switch, if cover is opened circuit breaker is tripped
  • Several convenience outlets with individual breakers
  • Durable external emergency E-stop switch
  • External fuel fill with lockable cap
  • Automatic remote start capable, located on control panel

Specifications

Output CSA Certified
3 Phase - Standby kW (kVA) 153 (191)
Amps 480V (208V) 230 (530)
3 Phase - Prime kW (kVA) 138 (172)
Amps 480V (208V) 207 (477)
1 Phase - Standby kW (kVA) 125 (125)
Amps 240V 521
1 Phase - Prime kW (kVA) 120 (120)
Amps 240V 500
AC Voltage 1-phase 120, 139, 208, 220, 240, 277
AC Voltage 3-phase 208, 220, 440, 480
Frequency Hz 60
Power Factor 1.0 (1 Phase) / .8 (3 Phase)
Generator - Brand / Type / Insulation Marathon / Brushless / H
Sound (dB(A) 23 ft @ prime) 68
Size and Weight
Skid Mounted - L x W x H in (m) 144 x 50 x 77
Dry Weight lbs (kg) 6604 (2996)
Operating Weight lbs (kg) 9032 (4097)
Trailer Mounted - L x W x H in (m) 210 x 86 x 93
(5.33 x 2.18 x 2.36)
Dry Weight lbs (kg) 8000 (3629)
Operating Weight lbs (kg) 10428 (4730)
Engine
Type Interim Tier 4
Brand John Deere PE6068HFG94
Aspiration Turbo
Power - Prime @ 1800 rpm hp (kWm) 217 (162)
Displacement cubic in (L) 415 (6.8)
Cylinders 6
Speed rpm 1800
Fuel Consumption - Prime gph (Lph) 10.9 (41.3)
Capacities
Fuel Tank gal (L) 342 (1295)
Approximate Run Time hrs 29
Coolant qt (L) 31.5 (29.8)
Electrical Distribution
Battery - 12V 1 - 12V 1000 CCA Wet Cell
Main Circuit Breaker Size A 700
Voltage Selection 3 Position Switch (lockable)
Voltage Regulation +/-1%
120V - 20A GFI Duplex Outlets - qty 2
240V - 30A Twist Lock Outlets - qty N/A
240V - 50A Twist Lock Outlets - qty 3
Trailer
Number of Axles 2
Capacity - Axle Rating lbs (kg) 6000 (2722)
Tire Size in 16
Brakes Surge
Hitch 3" Ring
Maximum Tire Pressure psi 75
Options
Powertrain (Engine/Gen) • Engine Heater (Kim Hotstart)
• 60/40 Coolant
• SuperStart Generator
• PMG Generator
• Fuel Transfer Pump
Controls • Battery Disconnect, Lockable
• Battery Charger, 2 Amp
• 4 Position Phase Switch
• Buck Transformer Kit
• Cam Locks
Cabinet/Fuel Tank • 36 hr Fuel Tank
• Double Wall Standard Fuel Tank
• Containment
• Interior Cabinet Light
• Control Panel Light
• Auxiliary Strobe/Audible Indication
• Fire Extinguisher
Trailer • 2 5/16" Ball
• Electric Brakes
• Spare Tire/Wheel Kit
