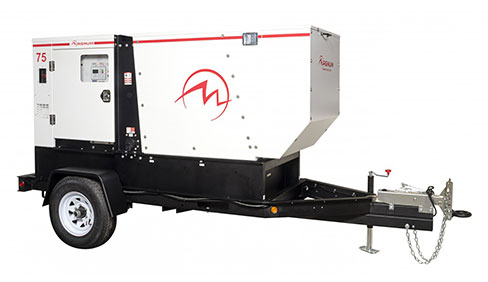

Generac Magnum MMG 75 Mobile Generator Interim Tier 4

Double tap to zoom



Features

The MMG 75 is built with the patented front flip-hood design for easy access to routine service and maintenance areas. Powered by a John Deere PowerTech engine the MMG 75 utilizes a catalyzed exhaust filter that contains a Diesel Oxidation Catalyst (DOC) and a Diesel Particulate Filter (DPF). The DOC reacts with exhaust gases to reduce the carbon monoxide, hydrocarbons and some particulate matter(PM). The downstream DPF traps and holds the remaining PM, which are oxidized within. Revolutionizing the generator industry, the MMG 75 is equipped with Magnum's new Power Zone digital controller and NEW Power Zone Advanced Digital Controller.

  • Power Zone, a state-of-the-art mobile generator controller and display
  • The new Power Zone controller will give the user better visibility, simple controls, easier troubleshooting and increase capabilities
  • Easy, real time monitoring at a glance with bold fonts and graphics on a large display
  • Convenience buttons with intuitive icons put the information you need at your fingertips
  • Automatic coarse voltage leveling and integrated fine voltage adjustment
  • Preventative maintenance alerts make certain equipment regularly serviced
  • Advanced diagnostics with detailed event logs and on screen contacts ensure that troubleshooting time is reduced
  • Built-in safety features that protect both you and your investment



Durable

  • White aluminum textured powder coat enclosure, sound attenuated baffles and insulation to reduce noise, 68 dBA at prime
  • Fully lockable enclosure with stainless steel exterior hardware
  • Industrial strength steel skid frame and dual axle trailer
  • Industrial strength steel skid frame and dual axle trailer



Reliable

  • Voltage regulation is plus or minus 1%
  • 165 gallon fuel capacity standard for 31 hours of run time
  • Air filter condition indicator on control panel
  • 2 year - 2,000 hour warranty
  • Low coolant shutdown

Specifications

Output
3 Phase - Standby kW (kVA) 69kW (86kVA)
Amps 480V (208V) 103V (239V)
3 Phase - Prime kW (kVA) 62kW (77kVA)
Amps 480V (208V) 93V (214V)
1 Phase - Standby kW (kVA) 60kW (60kVA)
Amps 240V 250
1 Phase - Prime kW (kVA) 56kW (56kVA)
Amps 240V 233
AC Voltage 1-phase 120,139,208,220,240,277
AC Voltage 3-phase 208,220,440,480
Frequency Hz 60Hz
Power Factor 1.0 (1 Phase) / .8 (3 Phase)
Generator - Brand / Type / Insulation Marathon / Brushless / H
Sound (dB(A) 23 ft @ prime) 68
Size and Weight
Skid Mounted - L x W x H in (m) 101 x 40 x 68
Dry Weight lbs (kg) 3530 (1600)
Operating Weight lbs (kg) 4700 (213)
Trailer Mounted - L x W x H in (m) 166 x 62 x 84
Dry Weight lbs (kg) 4240 (1923)
Operating Weight lbs (kg) 5410 (2454)
EngineJohn Deere PE 4045HF Interim Tier 4
Type Turbo
Brand John Deere PE 4045HF
Aspiration
Power - Prime @ 1800 rpm hp (kWm) 97 (72)
Displacement cubic in (L) 274 (4.5)
Cylinders 4
Speed rpm 1800
Fuel Consumption - Prime gph (Lph) 4.78 (18.1)
Capacities
Fuel Tank gal (L) 165 (625)
Approximate Run Time hrs 31
Coolant qt (L)
Electrical Distribution
Battery - 12V 1 12V /720 CCA
Main Circuit Breaker Size A 300
Voltage Selection 3 position lockable
Voltage Regulation +/-1%
120V - 20A GFI Duplex Outlets - qty 2
240V - 30A Twist Lock Outlets - qty N/A
240V - 50A Twist Lock Outlets - qty 3
Trailer
Number of Axles 1
Capacity - Axle Rating lbs (kg) 6000 (2722)
Tire Size in 15
Brakes Surge
Hitch 3" Ring
Maximum Tire Pressure psi
Options
Powertrain (Engine/Gen) • Engine Heater (Kim Hotstart)
  • 60/40 Coolant
  • SUPERSTART Generator
  • PMG Generator
  • Fuel Transfer Pump
Controls • Battery, 720 CCA Gel Cell
  • Battery Disconnect, Lockable
  • Battery Charger, 2 Amp
Cabinet/Fuel Tank • 36 hr Fuel Tank
  • Double Wall Standard Fuel Tank
  • Containment
  • Interior Cabinet Light
  • Control Panel Light
  • Auxiliary Strobe/Audible Indication
  • Fire Extinguisher
Trailer • 3" Ring
  • 2 5/16" Ball
  • Electric Brakes
  • Tandem Axle Trailer
  • Spare Tire/Wheel Kit
