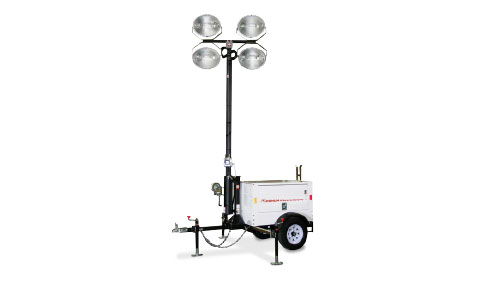

Generac Magnum MLT 3060

Double tap to zoom



Features

6 kW Mobile Lighting in a Narrow-Bodied Package

The Magnum MLT3060 Light Tower is our most popular model; just the right amount of power with the right amount of illumination. The 4 - 1000 watt light assemblies' offers complete flexibility with 360 degree rotation, steadfast in winds up to 65+ mph, sturdy outrigger stability along with five to seven acres of light on the site.
Now available with 60Hz and 50Hz frequency of power output

Features
Tough

  • Full tubular steel frame trailer
  • 30 foot all-steel mast
  • 4 - 1,000 watt metal halide lights
  • 4 point outrigger stance withstands 65+ mph winds
  • CSA Listed

Reliable

  • 4-stroke diesel engine - Mitsubishi or Kubota
  • Marathon generator
  • Low oil/high temperature automatic shutdowns
  • Protective start limit breaker
  • Simpler ballast configuration
  • Individual light breaker switches & ballast indicator lights
  • 2 year - 2,000 hour warranty

Easy to Use

  • Adjustable 360 degree mast rotation
  • 120V and 240V convenience receptacles
  • Lockable cabinet
  • DOT running light package on trailer
  • Fork guides on the mast and under the trailer

Specifications

Engine

Make/Brand Mitsubishi
Model L3E-W461ML
Aspiration Natural
Type Diesel, liquid cooled, 4-stroke
Power - Prime hp (kW) 10.5 (7.8)
Power - Standby hp (kW) 12.2 (9.1)
Operating Speed rpm 1800
Displacement cubic in (L) 57.97 (0.95)
Cylinders 3
Fuel Consumption - Prime gph (Lph) 0.47 (1.78)

Generator

Make/Brand Marathon Electric
Type Brushless
Insulation F

Generator Set (Engine/Gen)

Output - Standby kW (kVA) 6.0 (6.0)
Output Voltage V 120/240
Output Amperes 120V (240V) 50 (25)
Frequency Hz 60
Power Factor 1.0 (1 Phase)

Lighting

Lighting Type Metal halide
Ballast Type Coil & core
Lumens 440,000
Coverage acres (sq. meters) 5 - 7 (20,234 - 28,328)

Capacities

Fuel Tank gal (L) 30 (114)
Coolant (incl. engine) qt (L) 4.5 (4.3)
Oil (incl. filter) qt (L) 3.8 (3.6)
Maximum Run Time hrs 64

Size and Weight

Maximum height of tower ft (m) 30 (9.14)
Length w/ mast stowed in (m) 170 (4.32)
Width in (m) 49 (1.25)
Width w/ outriggers extended in (m) 98 (2.49)
Height w/ mast stowed in (m) 68 (1.73)
Dry Weight lbs (kg) 1640 (744)
Operating Weight lbs (kg) 1853 (841)

Electrical Distribution

Circuit Breaker Size 30
Voltage Selection N/A
Voltage Regulation Capacitor +/-6%
AC Voltage - 1 Phase 120, 240
Battery Voltage (qty per unit) 12V (1)
Battery Rating 440 CCA
120V-20 amp GFCI Duplex - qty 1
240V-30 amp Twist Lock - qty 1
240V-50 amp Twist Lock - qty N/A

Trailer

Number of Axles 1
Capacity - Axle Rating lbs (kg) 2200 (998)
Tire Size in 13
Brakes N/A
Hitch 2" Ball
Maximum Tire Pressure psi 50

Options

Powertrain (Engine/Gen) • 60/40 Coolant
  • Engine Heater (Lower Radiator Hose)
  • Alternative Engine - Kubota
  • Oil Drain Valve Kit
  • Cold Weather Belt (Mitsubishi only)
Controls • Battery, 720 CCA Gel Cell
  • Battery, 720 CCA Wet Cell
  • Battery, 685 CCA Gel Cell
  • No Battery
  • Battery Disconnect, Lockable
  • Autolight Controller
  • Battery Charger, 2 Amp
Cabinet/Fuel Tank • Level Indicator
  • Interior Cabinet Light
  • Cap, Fuel Tank - w/ lanyard
  • Spare Tire & Carrier
Trailer • Jack, Tube & Sleeve
  • 2 5/16" Ball
  • Combo Hitch - 2.5" Ring/2" Ball
  • 3" Ring
  • 2.5" Ring
  • Air Freight/Sea Container Racking
  • Manual Parking Brake
  • Electric Brakes
Mast/Winch • High Pressure Sodium Lights
  • Quick Disconnect Lights
  • Drape Cord
  • Galvanized Mast
  • Electric Winch
  • Electric Winch, Battery Disconnect
