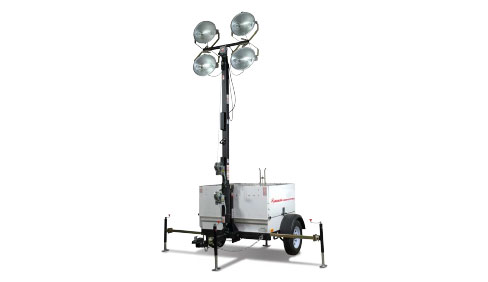

Generac Magnum MLT 5200

Double tap to zoom



Features

Highly Mobile Lighting

The Magnum MLT5200 Light Tower is built and designed for the most extreme environments, from deserts to the frozen tundra. The light tower offers complete flexibility with 360 degree rotation. The four 1,000 watt metal halide lights will fully illuminate up to seven acres.

Our unparalleled customer service/technical support teams and heavy-duty equipment is what gives our customers the ultimate "return on investment."

Features

Tough

  • Full tubular steel trailer
  • 30 foot all-steel mast
  • 4 - 1,000 watt metal halide lights
  • 4 point outrigger stance withstands 65+ mph winds

Reliable

  • 4-stroke diesel engine
  • Marathon generator
  • Low oil/high temperature automatic shutdowns
  • Protective start limit breaker
  • Individually breakered light switches
  • Four cylindrical ballasts
  • Individually canned transformers for proper heat dissipation
  • 2 year - 2,000 hour warranty

Easy to Use

  • 360 degree mast rotation
  • 120V and 240V convenience outlets
  • Hour meter engine
  • Lockable cabinet
  • DOT running light package
  • Fork guides on the mast and under the trailer
  • Easy access for service

Specifications

Engine

Make/Brand Isuzu
Model 4LE1-PV05
Aspiration Natural
Type Diesel, liquid cooled, 4-stroke
Power - Prime hp (kW) 31.5 (23.5)
Power - Standby hp (kW) 34.5 (25.7)
Operating Speed rpm 1800
Displacement cubic in (L) 134.25 (2.20)
Cylinders 4
Fuel Consumption - Prime gph (Lph) 1.80 (6.81)

Generator

Make/Brand Marathon Electric
Type Brushless
Insulation F

Generator Set (Engine/Gen)

Output - Standby kW (kVA) 20.0 (20.0)
Output Voltage V 120/240
Output Amperes 120V (240V) 167 (83)
Frequency Hz 60
Power Factor 1.0 (1 Phase)

Lighting

Lighting Type Metal halide
Ballast Type Coil & core
Lumens 440,000
Coverage acres (sq. meters) 5 - 7 (20,234 - 28,328)

Capacities

Fuel Tank gal (L) 56 (212)
Coolant (incl. engine) qt (L) 11.6 (11.0)
Oil (incl. filter) qt (L) 8.6 (8.1)
Maximum Run Time hrs 31

Size and Weight

Maximum height of tower ft (m) 30 (9.14)
Length w/ mast stowed in (m) 170 (4.32)
Width in (m) 78 (1.98)
Width w/ outriggers extended in (m) 151 (3.84)
Height w/ mast stowed in (m) 72 (1.83)
Dry Weight lbs (kg) 2202 (999)
Operating Weight lbs (kg) 2600 (1179)

Electrical Distribution

Circuit Breaker Size 100
Voltage Selection N/A
Voltage Regulation +/-1%
AC Voltage - 1 Phase 120, 240
Battery Voltage (qty per unit) 12V (1)
Battery Rating 720 CCA
120V-20 amp GFCI Duplex - qty 2
240V-30 amp Twist Lock - qty 2
240V-50 amp Twist Lock - qty 2

Trailer

Number of Axles 1
Capacity - Axle Rating lbs (kg) 3500 (1588)
Tire Size in 15
Brakes N/A
Hitch Combo - 2” ball hitch & 2.5” pintle ring
Maximum Tire Pressure psi 50

Options

Powertrain (Engine/Gen) • 60/40 Coolant
  • Engine Heater (Lower Radiator Hose)
  • Automatic Positive Air Shutdown Valve
  • Extended Run Oil Pan
  • Thermostatically Controlled Shutters
  • Oil Drain Valve Kit
Controls • Battery, 720 CCA Gel Cell
  • Battery, 685 CCA Gel Cell
  • No Battery
  • Battery Disconnect, Lockable
  • Autolight Controller
  • Battery Charger, 2 Amp
  • Alternative Outlet Panel Options (Consult factory for details)
Cabinet/Fuel Tank • Level Indicator
  • Interior Cabinet Light
  • Cap, Fuel Tank - w/ lanyard
  • Spare Tire & Carrier
  • Tank, 60 Gallon
Trailer • Jack, Tube & Sleeve
  • 2 5/16" Ball
  • 2" Ball
  • 3" Ring
  • 2.5" Ring
  • Air Freight/Sea Container Racking
  • Manual Parking Brake
  • Electric Brakes
Mast/Winch • High Pressure Sodium Lights
  • Drape Cord
  • Galvanized Mast
  • Electric Winch
  • Electric Winch, Battery Disconnect
