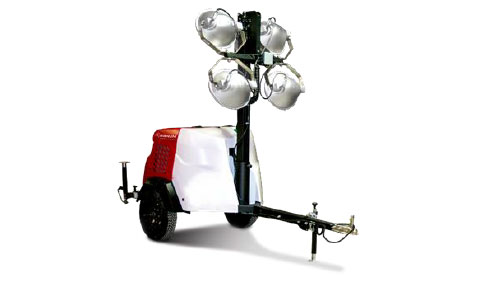

Generac Magnum MLT 6S

Double tap to zoom



Features

From the leading manufacturer of light towers, Generac's Magnum Power Products introduces a revolutionary twist on the traditional vertical mast light towers. This line combines the best of innovation and technology and offers rental customers a durable, attractive package that is loaded with must have features.

Standard features include:

  • Vertical mast with ergonomic two-handled winch that deploys in seconds
  • The largest fuel tank in its class allowing your customers up to 90 hours of run time
  • Service interval extended by 100% (750 hours in between service)
  • Trailer & control panel lights operate while running for greater visibility and added safety
  • A corrosion proof poly shell that is durable and can withstand the toughest applications
  • The best ROI in class
  • A wider wheel base and longer tongue for improved towing stability
  • Built in tilt positioning so lights start out in a consumer preferred angle

Specifications

Engine Kubota® D1005- liquid cooled, diesel engine
  Standby - 13.1 hp @ 1800 rpm
  Prime - 11.7 hp @ 1800 rpm
  3 cylinder
  1.0 L displacement
  Fuel consumption (prime) – 0.50 gph (1.89 Lph)
  Mitsubishi® L3E- liquid cooled, diesel engine
  Standby - 12.2 hp @ 1800 rpm
  Prime - 10.5 hp @ 1800 rpm
  3 cylinder
  0.95 L displacement
  Fuel consumption (prime) – 0.47 gph (1.78 Lph)
  Industrial engine exhaust system
  Cooling system capable of operating at 120°F ambient
  Full flow oil filter, spin on type
  Fuel filter, spin on type
  Dry type cartridge air filter
  43 gal. Polyethylene fuel tank
  90 hr. run capacity with 4 light load
  External 3 ½” fill port with optional
  Pad Lockable Cap

Engine Controls External, illuminated Control Panel with sealed switches
  Four position keyed switch – (off, run, glow start)
  Digital Hour meter
  Automatic low oil pressure/high temperature shutdown system

Generators Marathon Electric®, Brushless, 6 kW continuous output
  120/240 VAC – 50/25A
  +/-6% capacitor voltage regulation

Electrical System and Controls 30A start trip breaker (assures no load condition exists before starting)
  Individual floodlight circuits with sealed 15A breakers
  Standard individually breakered convenience outlets:
  (1) 120 VAC 20 Amp GFCI duplex outlet (Nema 5-20R type)
  (1) 240 VAC 30 Amp twist lock outlet (Nema L6-30R type)

Floodlights Four 1,000 watt metal halide, oval light fixtures
  Tempered glass lens
  Silicone gaskets for moisture and dust protection
  Friction disc mounting for tool less positioning

Wiring Wiring is sized and fused to the amperage draw required
  AC & DC wiring diagrams provided

Mast 23ft, 5 section vertical mast with ground adjustable light fixtures.
  Dual handle manual winch for ease of deployment, enclosed tamper proof brake system
  Distinctive angle fixture mount for common light distribution
  360° ground rotational mast with mast fully extended.
  Industrial black powder coat finish with polymer guides
  Mast stowed height: 8’ 5”.

Enclosure Thermoformed hood enclosure with UV protected colorant
  Flip hood engine compartment for ease of service
  Multi-lingual operating/safety decals
  License plate holder with light
  Manual holder with operating manual

Trailer Tubular steel frame
  Three, 1200 lb. tube and sleeve leveling jacks
  All jacks transport and lock in position for storage
  Side outriggers deployed – 10’span
  7,800 lbs safety chains with spring loaded safety hooks
  2” ball hitch
  Molded polyethylene fenders
  DOT approved LED tail, side, brake, and directional lights
  2200 lb. leaf spring axle
  ST175/80D13 – 6 ply
  47 in. track width

Weight & Dimensions Dry weight: 1340 lbs. (608 kg)
  Operating weight: 1630 lbs (739 kg)
  Operating weight: 1630 lbs (739 kg)
