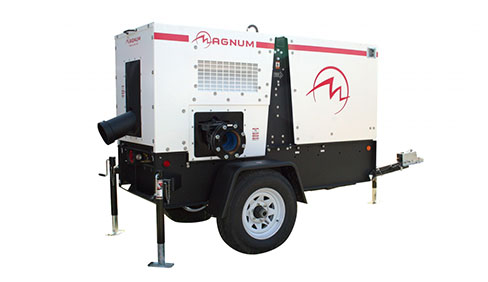

Generac Magnum MTP 4500FH

Double tap to zoom



Features

Sorry, currently there are no features but check back with us later.

Specifications

Pump Set (Engine/Pump)
Max. Pump Output gpm (Lpm) 1940 (7343)
Max. Pump Output gph (Lph) 116,400 (440,580)
Total Dynamic Head ft (m) 154 (46.9)
Max. Diameter of Solids in (mm) 3 (76.2)
Max. Lift Suction ft (m) 28 (8.5)
Pump
Make/Brand Pioneer
Model
Fitting Size 4" NPTF
Impeller Type 8.25" enclosed
Impeller Material CA6NM Stainless Steel
Volute Casing Material ASTM A536 Ductile Iron
Wear Plate Material ASTM A536 Ductile Iron
Mechanical Seal Oil Bath
Bearing Housing
Shaft Material Lasalle stressproof
Pump Casing Material
Seal Lubricant
Engine
Brand John Deere
Model PE4024TF281 IT4
Type diesel, liquid cooled, 4 cylinder
Engine Power - Continuous hp (kW) 52 (38.9)
Engine Power - Intermittent hp (kW)
Displacement cubic in (L) 149 (2.4)
Cylinders 4
Operating Speed rpm 2200
Fuel Type Diesel
Fuel Consumption - Intermittent gph (Lph) 2.0 (7.6)
Capacities
Fuel Tank gal (L) 110 (416)
Coolant (incl. engine) qt (L)
Oil (incl. filter) qt (L)
Approximate Run Time hrs 48
Size and Weight
Skid Mounted - L x W x H in (m) 95"x 35" x 55"
Dry Weight lbs (kg) 2660 (1206)
Operating Weight lbs (kg) 3420 (1551)
Trailer Mounted - L x W x H in (m) 150" x 57" x 74"
Dry Weight lbs (kg) 3180(1442)
Operating Weight lbs (kg) 3940 (1787)
Skid Mounted Enclosed - L x W x H in (m) 95"x 35" x 55"
Dry Weight lbs (kg) 2660 (1206)
Operating Weight lbs (kg) 3420 (1551)
Trailer
Tongue Type Flip-Tongue
Number of Axles 1
Capacity - Axle Rating lbs (kg) 5000 (2268)
Tire Size in 15
Brakes Surge
Hitch 2 " Ball
Maximum Tire Pressure psi
Options
Powertrain (Engine/Pump) Low Coolant Shutdown
Controls/Fuel Tank Low Fuel Warning/Shutdown Fuel Transfer Pump
Fittings - Inlet Ball & Lock Ring - 4"
  Socket, Male - 4" Galv
  Cam & Groove, Female Coupler - 4"
  Weldment, NPT 45˚ Male/Female - 4"
  Cam & Groove, Male Coupler - 4"
Fittings - Outlet Ball & Lock Ring - 4"
  Socket, Male - 4" Galv
  Cam & Groove, Female Coupler - 4"
  Weldment, NPT 45˚ Male/Female - 4"
  Cam & Groove, Male Coupler - 4"
Trailer 3" Ring
  2 5/16" Ball
  Electric Brakes
