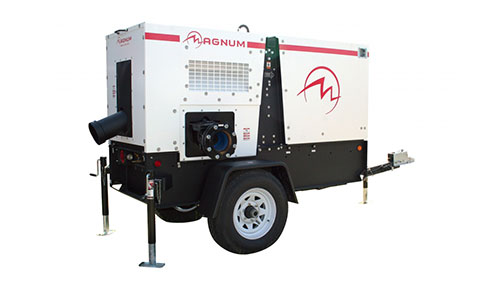

Generac Magnum MTP 6500FH

Double tap to zoom



Features

Patented Flip-hood Enclosure

Magnum has taken their Patented flip-hood design enclosure to a whole new level. The enclosed design not only offers superior sound attenuation, but easy, open access to the pump inlet, discharge end and all of the daily operator checks as well as protection from weather elements.

Preferred Choice- Sound Attenuated for Residential Application

The Magnum MTP 6500FH enclosed dry prime diesel trash pump is designed and built for the most demanding environments that require a quieter operation. The enclosed dry prime pump is perfect for residential application, with adB(A) of 70 at 23 feet at prime power.

Reliable Performance

Designed with a Pioneer pump end, the dry priming pump features a tough ductile iron impeller, ductile iron volute and wear plates.

Magnum's enclosed pump is capable of handling solids up to 3" in diameter and has a flow capacity of up to 3050 gallons per minute and a total dynamic head of 165'. The enclosed pump offers a 110 gallon fuel capacity for 34 hours run time. The trailer is easily detachable, allowing for skid configurations for a variety of applications.

Our unparalled customer service/technical support teams and heavy-duty equipment built for reliablity and proven durability is what gives our customers unsurpassed value.

Features

  • 6" Dry priming centrifugal Pioneer pump
  • Flows up to 3,050gpm
  • Heads up to 165'
  • Maximum lift suction - 28 feet
  • Patented Flip-hood enclosure
  • Electric start
  • 110 gallon fuel tank with gauge
  • CP750 Digital Controller with advanced automatic start/stop controls
  • Shaft material - Lasalle stressproof
  • Central lift point
  • Impeller material - CA6NM Stainless Steel
  • Volute and wear plates - Ductile iron - (ASTM A536)
  • Trailer - easily detachable
  • 2" ball hitch
  • Front and (2) rear stabilizing jacks
  • Surge brakes
  • Heavy duty 5000 lb axle and wheels
  • Heavy duty truck tie downs
  • Patented flip-tongue - prevents theft, compact storage

Specifications

Pump Set (Engine/Pump)
Max. Pump Output gpm (Lpm) 3050 (11546)
Max. Pump Output gph (Lph) 183,000 (692,760)
Total Dynamic Head ft (m) 165 (50.2)
Max. Diameter of Solids in (mm) 3.0 (76.2)
Max. Lift Suction ft (m) 28 (8.5)
Pump
Make/Brand Pioneer Pump Inc
Model VP66S10L72-EG410
Fitting Size 6" NPTF
Impeller Type 10" diameter Enclosed
Impeller Material Ductile Iron
Volute Casing Material ASTM A536 Ductile Iron
Wear Plate Material ASTM A536 Ductile Iron
Mechanical Seal Tungsten and Silicon Carbide
Bearing Housing ASTM A48 Class 30 Gray Iron
Shaft Material 17-4 PH Stainless Steel
Pump Casing Material HG Spheroidal Graphite Ductile Cast Iron
Seal Lubricant SAE Grade 68 Hydraullic Oil
Engine
Brand Kubota
Model V3600E3BKEA3 iT4
Type Diesel, liquid cooled, 4-stroke
Engine Power - Continuous hp (kW)
Engine Power - Intermittent hp (kW) 63.7 (47.5) @ Operating Speed
Displacement cubic in (L) 221 (3.6)
Cylinders 4
Operating Speed rpm 2200
Fuel Type Diesel
Fuel Consumption - Intermittent gph (Lph) 2.9
Capacities
Fuel Tank gal (L) 110 (416)
Coolant (incl. engine) qt (L)
Oil (incl. filter) qt (L)
Approximate Run Time hrs 34
Size and Weight
Skid Mounted - L x W x H in (m) 95 x 35 x 55 (2.41 x 0.89 x1.40)
Dry Weight lbs (kg) 2815 (1280)
Operating Weight lbs (kg) 3500 (1590)
Trailer Mounted - L x W x H in (m) 150 x 57 x 74 (3.81 x 1.45 x 1.88)
Dry Weight lbs (kg) 3340 (1520)
Operating Weight lbs (kg) 4025 (1830)
Skid Mounted Enclosed - L x W x H in (m) 95 x 35 x 55 (2.41 x 0.89 x 1.40)
Dry Weight lbs (kg) 2815 (1280
Operating Weight lbs (kg) 3500 (1590)
Trailer
Tongue Type Flip-Tongue*
Number of Axles 1
Capacity - Axle Rating lbs (kg) 5000 (2268)
Tire Size in 15
Brakes Surge
Hitch 2" ball
Maximum Tire Pressure psi 65
Options
Powertrain (Engine/Pump) • Low Coolant Shutdown
  • Engine Heater (Kim Hotstart)
  • 60/40 Coolant
Controls/Fuel Tank • Low Fuel Warning/Shutdown
  • Fuel Transfer Pump
  • Battery, 900 CCA Wet Cell
  • Battery, 720 CCA Gel Cell
  • Battery Disconnect, Lockable
  • 24 hr Fuel Tank
  • 36 hr Fuel Tank
  • Containment
Fittings - Inlet • Ball & Lock Ring
  • Socket, Male - Galv
  • Cam & Groove, Female Coupler
  • Weldment, NPT 45° Male/Female
  • Cam & Groove, Male Coupler
Fittings - Outlet • Ball & Lock Ring
  • Socket, Male - Galv
  • Cam & Groove, Female Coupler
  • Weldment, NPT 45° Male/Female
  • Cam & Groove, Male Coupler
Trailer • 3" Ring
  • 2 5/16" Ball
  • Electric Brakes
Product Notes
General Notes *Patented Flip-hood Enclosure - Sound: 70 dB(A) at 23' - continuous power
