Features

Reliable, Mobile Dry Prime Pump

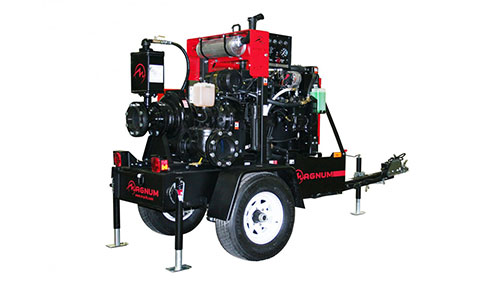

The Magnum MTP 4000D dry prime pump is maneuverable and mobile, designed and built for the most demanding environments. The dry priming centrifugal pump is capable of handling up to 3 inch diameter solids and flow capacities up to 1940 gpm. The pump offers a 110 gallon fuel capacity for up to 48 hour run time.

Newly designed with a Pioneer pump end, the pump features a Venturi priming system, ductile iron volute and wear plates. Environment friendly and powerful, the MTP 4000D is powered with a John Deere Interim Tier IV engine. The trailer is easily detachable, allowing for skid configurations for a variety of applications.

Our unparalleled customer service/technical support teams and heavy-duty equipment built for reliability and durability provide our customers unsurpassed value.

Features

  • Dry priming centrifugal Pioneer pump end - 4"
  • Flows up to 1940 gpm/4"
  • Heads up to 154' TDH/4"
  • Electric start
  • 110 gallon fuel tank with gauge
  • 1/4" wall fuel tank
  • Analog gauge control panel with safety shutdowns
  • Shaft material - Lasalle stressproof
  • Central lift point
  • Impeller material - CA6NM Stainless Steel
  • Volute and wear plates - Ductile iron (ASTM A536)
  • Trailer - easily detachable
  • 2" ball hitch
  • Front and (2) rear stabilizing jacks
  • Surge brakes
  • Heavy duty 5000 lb. axle and wheels
  • Heavy duty truck tie downs
  • Warranty - one year unlimited hours, two years 2000 hours

Specifications

Pump Set (Engine/Pump)
Max. Pump Output gpm (Lpm) 1940 (7343)
Max. Pump Output gph (Lph) 116,400 (440,580)
Total Dynamic Head ft (m) 154 (46.9)
Max. Diameter of Solids in (mm) 3 (76.2)
Max. Lift Suction ft (m) 28(8.5)
Pump
Make/Brand Pioneer Pump Inc
Model VP44S8L71-EG410
Fitting Size 4" NPTF
Impeller Type Enclosed
Impeller Material CA6NM Stainless Steel
Volute Casing Material ASTM A536 Ductile Iron
Wear Plate Material ASTM A536 Ductile Iron
Mechanical Seal
Bearing Housing
Shaft Material Lasalle Stressproof
Pump Casing Material
Seal Lubricant
Engine
Brand John Deere
Model PE4024TF281 Interim Tier IV
Type Diesel, liquid cooled, 4-stroke
Engine Power - Continuous hp (kW) 39 (29.0) @ Operating Speed
Engine Power - Intermittent hp (kW) 46 (34.1) @ Operating Speed
Displacement cubic in (L) 149 (2.4)
Cylinders 4
Operating Speed rpm 2200
Fuel Type Diesel
Fuel Consumption - Intermittent gph (Lph) 2.0 (7.6)
Capacities
Fuel Tank gal (L) 110 (416)
Coolant (incl. engine) qt (L)
Oil (incl. filter) qt (L)
Approximate Run Time hrs 48
Size and Weight
Skid Mounted - L x W x H in (m) 82 x 35 x 60 (2.08 x .089 x 1.52)
Dry Weight lbs (kg) 2346 (1064)
Operating Weight lbs (kg) 3138 (1423)
Trailer Mounted - L x W x H in (m) 138 x 57 x 78 (3.51 x 1.45 x 1.98)
Dry Weight lbs (kg) 2896 (1314)
Operating Weight lbs (kg) 3688 (1673)
Skid Mounted Enclosed - L x W x H in (m) N/A
Dry Weight lbs (kg) N/A
Operating Weight lbs (kg) N/A
Trailer
Tongue Type Flip-Tongue*
Number of Axles 1
Capacity - Axle Rating lbs (kg) 5000 (2268)
Tire Size in 15
Brakes Surge
Hitch 2" Ball
Maximum Tire Pressure psi 65
Options
Powertrain (Engine/Pump) • Low Coolant Shutdown
Controls/Fuel Tank • Low Fuel Warning/Shutdown
  • Fuel Transfer Pump
Fittings - Inlet • Ball & Lock Ring
  • Socket, Male - Galv
  • Cam & Groove, Female Coupler
  • Weldment, NPT 45° Male/Female
  • Cam & Groove, Male Coupler
Fittings - Outlet • Ball & Lock Ring
  • Socket, Male - Galv
  • Cam & Groove, Female Coupler
  • Weldment, NPT 45° Male/Female
  • Cam & Groove, Male Coupler
Trailer • 3" Ring
  • 2 5/16" Ball
  • Electric Brakes
Product Notes
General Notes *Patent Approved
Sound: 80 dB(A) at 23' - continuous power
