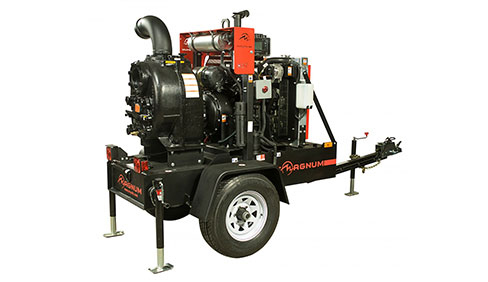

Generac Magnum MTP 4000S

Double tap to zoom



Features

Rugged, Portable Wet-Prime Pump

Magnum's MTP4000S diesel trash pump is maneuverable and portable, designed and built for the most demanding environments. The Magnum self-priming centrifugal 4" pump is capable of handling 3 inch diameter solids and flow capacities up to 1150gpm.

Features

  • Wet priming centrifugal Pioneer pump - 4"
  • Flows up to 1150 gpm/4"
  • Heads up to 140' TDH/4"
  • Electric start
  • 110 gallon fuel tank with gauge
  • 1/4" wall fuel tank
  • Analog gauge control panel with safety shutdowns
  • Removable cover plate
  • Shaft material - 17-4 PH stainless steel
  • Pressure relief valve - brass
  • O-rings - viton
  • Clean out cover - easily removable
  • Central lift point
  • Trailer - easily detachable
  • 2" ball hitch
  • Front and (2) rear stabilizing jacks
  • Surge brakes
  • Heavy duty 5000 lb. axle and wheels
  • Heavy duty truck tie downs
  • Warranty - one year unlimited hours, two years, 2000 hours

Specifications

Pump Set (Engine/Pump)
Max. Pump Output gpm (Lpm) 1150 (4353)
Max. Pump Output gph (Lph) 69,000 (261,180)
Total Dynamic Head ft (m) 140 (42)
Max. Diameter of Solids in (mm) 3.0 (76.2)
Max. Lift Suction ft (m) 25 (8)
Pump
Make/Brand Pioneer Pump Inc.
Model ES4
Fitting Size 4" NPTF
Impeller Type Open-two Vane
Impeller Material ASTM A536 Ductile Iron
Volute Casing Material ASTM A536 Ductile Iron
Wear Plate Material ASTM A536 Ductile Iron
Mechanical Seal Tungsten mechanical seal
  Oil lubricated
Bearing Housing ASTM A48 Class 30 Gray Iron
Shaft Material 17-4 PH Stainless Steel
Pump Casing Material ASTM A536 Ductile Iron
Seal Lubricant ISO32 Turbine Oil
Engine
Brand John Deere Interim Tier IV
Model PE4024TF281
Type Diesel, liquid cooled, 4-stroke
Engine Power - Continuous hp (kW) 41 (30.8) @ Operating Speed
Engine Power - Intermittent hp (kW) 49.0 (36.0) @ Operating Speed
Displacement cubic in (L) 149 (2.4)
Cylinders 4
Operating Speed rpm 2200
Fuel Type Diesel
Fuel Consumption - Intermittent gph (Lph) 2.0 (7.6)
Capacities
Fuel Tank gal (L) 110 (416)
Coolant (incl. engine) qt (L) 11.0 (10.4)
Oil (incl. filter) qt (L) 8.5 (8.0)
Approximate Run Time hrs 48
Size and Weight
Skid Mounted - L x W x H in (m) 82 x 35 x 60 (2.08 x 0.89 x 1.52)
Dry Weight lbs (kg) 2407(1091)
Operating Weight lbs (kg) 3199 (1451)
Trailer Mounted - L x W x H in (m) 138 x 57 x 78 (3.51 x 1.45 x 1.98)
Dry Weight lbs (kg) 2957 (1341)
Operating Weight lbs (kg) 3749 (1701)
Skid Mounted Enclosed - L x W x H in (m) N/A
Dry Weight lbs (kg) N/A
Operating Weight lbs (kg) N/A
Trailer
Tongue Type Flip-Tongue*
Number of Axles 1
Capacity - Axle Rating lbs (kg) 5000 (2268)
Tire Size in 15
Brakes Surge
Hitch 2" Ball
Maximum Tire Pressure psi 65
Options
Powertrain (Engine/Pump) • Low Coolant Shutdown
Controls/Fuel Tank • Low Fuel Warning/Shutdown
  • Fuel Transfer Pump
Fittings - Inlet • Ball & Lock Ring
  • Socket, Male - Galv
  • Cam & Groove, Female Coupler
  • Weldment, NPT 45° Male/Female
  • Cam & Groove, Male Coupler
Fittings - Outlet • Ball & Lock Ring
  • Socket, Male - Galv
  • Cam & Groove, Female Coupler
  • Weldment, NPT 45° Male/Female
  • Cam & Groove, Male Coupler
Trailer • 3" Ring
  • 2 5/16" Ball
  • Electric Brakes
