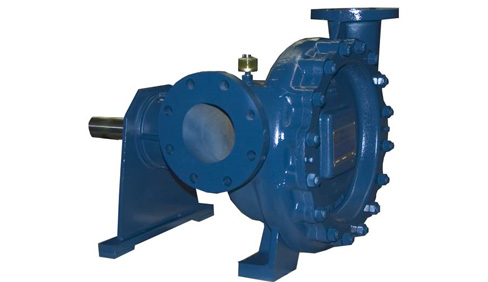

Gorman-Rupp 54J20-B

Double tap to zoom



Features

Size: 5" x 4" (127 x 101 mm) Flanged.
Casing: Gray Iron 35.
Maximum Operating Pressure 276 psi (1903 kPa).*
Enclosed Type, Six Vane Impeller: Gray Iron 30.
Handles 1/2" (12,7 mm) Diameter Spherical Solids.
Impeller Shaft: Alloy Steel 4150.
Replaceable Wear Ring: Gray Iron 30.
Pedestal Body: Gray Iron 30.
Seal Housing: Gray Iron 30.
Radial Bearing: Open Single Row Ball.
Thrust Bearing: Open Double Row Ball.
Bearing Lubrication: SAE 30 Non-Detergent Oil.
Cover Plate: Gray Iron 30.
Gaskets: Vegetable Fiber.
Hardware: Standard Plated Steel.
Oil Level Sight Gauge.
Strainer.
*Consult Factory for Applications Exceeding
Maximum Pressure and/or Temperature Indicated.

Specifications

Suction 5" (127 mm)
Discharge 4" (102 mm)
Solids Handling 0.5" (13 mm)
Solids Handling Cast Iron
Impeller Material Cast Iron
Seal Material Tungsten Carbide
Flange ASA
Drive Type Basic
