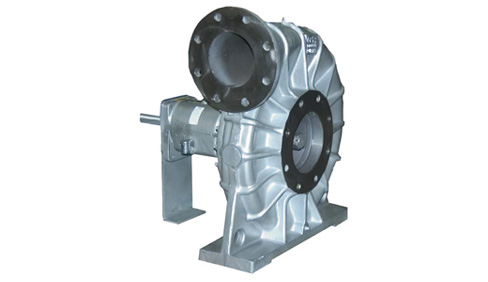

Gorman-Rupp 65A31-B

Double tap to zoom



Features

Size: 6" x 5" (152 mm x 127 mm) Flanged.
Casing: (65A31-B) Ductile Iron 65-45-12.
(65A32-B) Cast Steel 70-36.
Maximum Operating Pressure 98 psi (676 kPa).*
Enclosed Type, Five Vane Impeller: Aluminum Alloy 356-T6.
Handles 1/2" (12,7 mm) Diameter Spherical Solids.
Impeller Shaft: Carbon Steel 1045.
Bearing Housing: Ductile Iron 65-45-12.
Radial Bearing: Open Double Row Ball.
Thrust Bearing: Open Single Row Ball.
Bearing Lubrication: SAE 30 Non-Detergent Oil.
Body Cover: (65A31-B) Ductile Iron 65-45-12.
(65A32-B) Cast Steel 70-36.
Gaskets: Vegetable Fiber and Cork.
Hardware: Standard Plated Steel.
*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.

Specifications

Suction 6" (152 mm)
Discharge 5" (127 mm)
Solids Handling 0.5" (13 mm)
Solids Handling Ductile Iron
Impeller Material Aluminum
Seal Material Carbon/Ni-Resist
Flange ASA
Drive Type Basic
