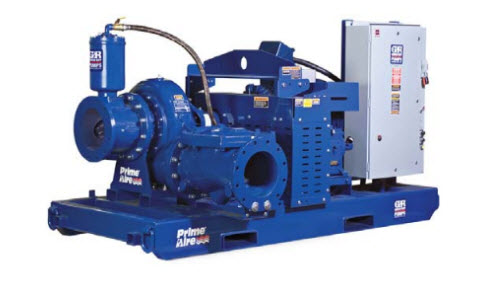

Gorman-Rupp PA12A60-B-E125 3P

Double tap to zoom



Features

Size: 12” x 12” (305 mm x 305 mm) Flanged.
Casing: Gray Iron 30. Maximum Operating Pressure 57 psi (393 kPa).*
Enclosed Type, Three Vane Impeller: Ductile Iron 60‐40‐18.
Handles 3” (76,2 mm) Diameter Spherical Solids.
Suction Spool: Gray Iron 30.
Impeller Shaft: Stainless Steel 17‐4 PH.
Replaceable Wear Rings: Impeller ‐ Ductile Iron 80‐60‐03.
Suction Head ‐ Copper Alloy C83600.
Seal Plate: Gray Iron 30.
Pedestal: Gray Iron 30.
Seal: Mechanical, Oil‐Lubricated, Double Floating, Self‐Aligning. Silicon
Carbide Rotating and Stationary Faces. Stainless Steel 316 Stationary
Seat. Buna‐N and Fluorocarbon Elastomers (DuPont Viton or
Equivalent). Stainless Steel 18‐8 Cage and Spring.
Maximum Temperature of Liquid Pumped 160F (71C).*
Shaft Sleeve: Stainless Steel 304.
Priming Chamber: Gray Iron 30 Housing w/Stainless Steel Float and
Linkage.
Discharge Check Valve: Ductile Iron Housing w/Buna‐N Flapper.
Radial Bearing: Single Row Roller.
Thrust Bearing: Two Open Single Row Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non‐Detergent Oil.
Gaskets: Resistant Synthetic Rubber and Vegetable Fiber.
O‐Rings: Buna‐N.
Hardware: Standard Plated Steel.
Bearing and Seal Cavity Oil Level Sight Gauges.
*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.

Specifications

Suction 12" (305 mm)
Discharge 12" (305 mm)
Solids Handling 3" (76 mm)
Material Cast Iron
Impeller Material Ductile Iron
Seal Material Silicon Carbide
Flange ASA
Drive Type Electric Motor
