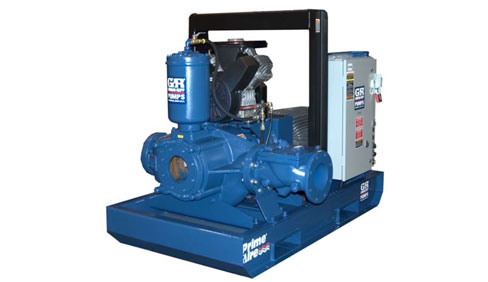

Gorman-Rupp PA6C60-B-E50 460/3

Double tap to zoom



Features

Size: 6" x 6" (152 mm x 152 mm) Flanged.
Casing: Ductile Iron 65-45-12.
Maximum Operating Pressure 78 psi (538 kPa).*
Semi-Open Type, Two Vane Impeller: Ductile Iron 65-45-12.
Handles 3" (76,2 mm) Diameter Spherical Solids.
Impeller Shaft: Stainless Steel 17-4 PH.
Replaceable Wear Plate: Ductile Iron 80-60-03.
Removeable Cleanout Cover Plate: Carbon Steel 1015.
Drive Flange: Gray Iron 30.
Seal Plate: Gray Iron 30.
Seal: Mechanical, Oil-Lubricated. Silicon Carbide Rotating and Stationary Faces. Stainless Steel 316 Stationary Seat. Fluorocarbon Elastomers (DuPont Viton or Equivalent). Stainless Steel 18-8 Cage and Spring. Maximum Temperature of Liquid Pumped, 160F (71C).*
Shaft Sleeve: Stainless Steel 17-4 PH.
Priming Chamber: Gray Iron 30.
Discharge Check Valve: Gray Iron 30 Housing w/Buna-N Flapper.
Radial/Thrust Bearings: Open Double Ball.
Bearing and Seal Cavity Lubrication: SAE 30 Non-Detergent Oil.
Flanges: Gray Iron 30.
Gaskets: Resistant Synthetic Rubber, Vegetable Fiber and Buna-N.
O-Rings: Buna-N.
Hardware: Standard Plated Steel.
Bearing and Seal Cavity Oil Level Sight Gauges.
*Consult Factory for Applications Exceeding Maximum Pressure and/or Temperature Indicated.

Specifications

Suction 6" (152 mm)
Discharge 6" (152 mm)
Solids Handling 3" (76 mm)
Solids Handling Ductile Iron
Impeller Material Ductile Iron
Seal Material Silicon Carbide
Flange ASA
Drive Type Electric Motor
