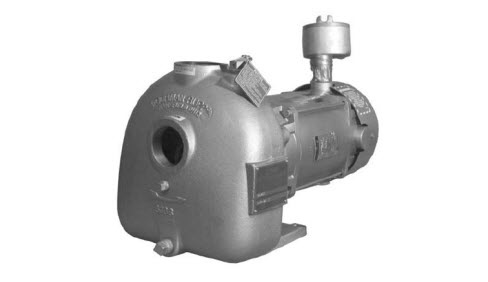

Gorman-Rupp 02C3-X.75 3P

Double tap to zoom



Features

Size: 2” x 2” (51 mm x 51 mm) NPT - Female.
Casing: Gray Iron 30.
Maximum Operating Pressure 28 psi (200 kPa).*
Enclosed Type, Five Vane Impeller: Copper Alloy C83600.
Handles 11/32” (8,7 mm) Diameter Spherical Solids.
Replaceable Vane Plate: Gray Iron 30.
Intermediate: Gray Iron 30.
Seal: Type 21, Mechanical, Self‐Lubricated. Carbon
Rotating Face. Ni‐Resist Stationary Face. Fluorocarbon
Elastomers (DuPont Viton or Equivalent). Stainless Steel
18‐8 Cage and Spring. Maximum Temperature of Liquid
Pumped, 160F (71C).*
Gasket: NC710 Cork with Nitrile Binder.
O‐Ring: Fluorocarbon (DuPont Viton or Equivalent).
Hardware: Standard Plated Steel.
Optional Equipment: All Iron Construction. Ductile Iron
Casing. Type 9 Mechanical Self‐Lubricated Seal w/Carbon
and Ceramic Faces and PTFE Elastomers. Wheel Kit
w/Semi‐Pneumatic Tires.
*Consult Factory for Applications Exceeding Maximum
Pressure and/or Temperature Indicated.

Specifications

Suction 2" (51 mm)
Discharge 2" (51 mm)
Solids Handling 0.34" (9 mm)
Material Cast Iron
Impeller Material Copper Alloy
Seal Material Carbon/Ni-Resist
Flange ASA
Drive Type Electric Motor
